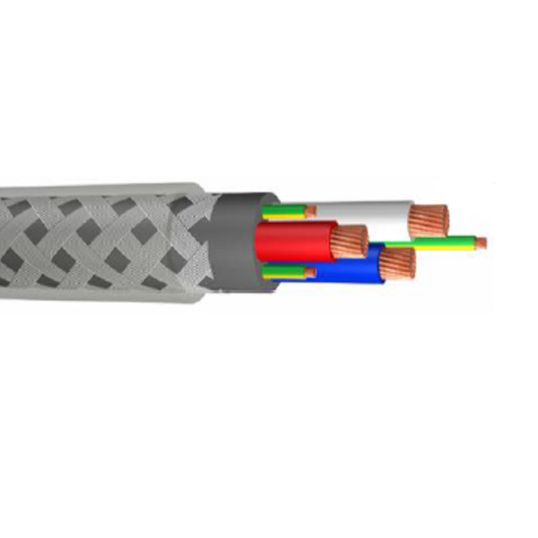

WWC Conflex Series 1 Flexible Cable VSD EMC Screened 3 Core & 3 Earth 16 mm 0.6/1kV PVC/Tinned Copper Braid/PVC Clear

$WWC\WWC_Flexible_VSD-EMC.jpg$

Description

VSD/EMC Cable, 16 mm, Class 5 Stranded Annealed Copper, 0.6-1 kV, 3 Core + 3 Earth, 22.6 mm Overall Diameter, 18.6 mm Bedding Diameter, 2.5 mm Earth Conductor, 190 mm During Installation/142 mm After Installation Bend Radius, 1 mm Insulation Thickness, 1.21 Ohm/km Conductor Resistance, Tinned Copper Braid Screen, Red/Blue/White/Green/Yellow Core, V-75 PVC Insulation, V-75 PVC Sheath, Clear Sheath, -25 to 75 deg C, AS/NZS 5000.1 AS/NZS 3808 AS/NZS 1660.5.1 IEC 60332-3-24

Key Specifications

SKU	WWC9416
Brand	WWC
Range Name	Conflex
Product Type	VSD/EMC Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	9416
Bedding Diameter	18.6 mm
Bend Radius	190 mm During Installation/142 mm After Installation
Conductor Resistance	1.21 Ohm/km
Conductor Size	16 mm
Conductor Type	Class 5 Stranded Annealed Copper
Core Colours	Red/Blue/White/Green/Yellow
Earth Conductor Size	2.5 mm
Insulation Material	V-75 PVC
Insulation Thickness	1 mm
Number of Cores	3 Core + 3 Earth
Overall Diameter	22.6 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	V-75 PVC
Standards	AS/NZS 5000.1 AS/NZS 3808 AS/NZS 1660.5.1 IEC 60332-3-24
Temperature	-25 to 75 deg C
Voltage	0.6-1 kV
