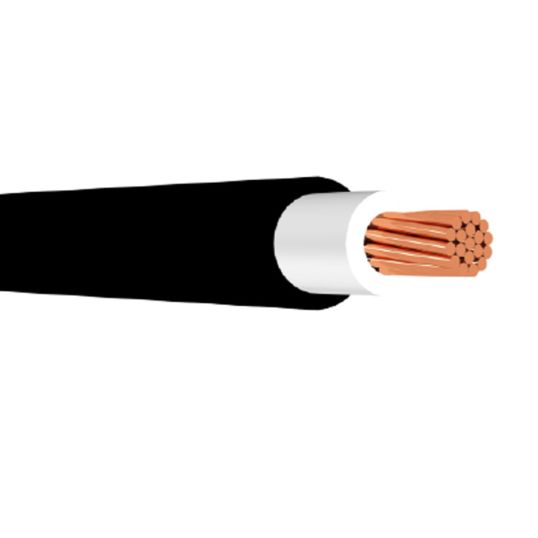

WWC SDI Cable XLPE 1 Core 400mm 0.6/1kV Class 2 Bare Compacted Copper XLPE/PVC Black

chevron-left
loader
Loading...

Description

chevron-down
Circular XLPE Cable SDI, 400 mm, Class 2 Annealed Copper, 0.6-1 kV, 1 Core, 31.8 mm Overall Diameter, 401 mm During Installation/267 mm After Installation Bend Radius, 2 mm Insulation Thickness, X-90 XLPE Insulation, White Insulation, 5V-90 PVC Sheath, Black Sheath, AS/NZS 5000.1

Key Specifications

chevron-down
SKU
WWC7840XV
Brand
WWC
Product Type
Circular XLPE SDI

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Standard Pack Size 1
UNSPSC Class 26121600
UOM MTR
Vendor Product 7840XV
Bend Radius 401 mm During Installation/267 mm After Installation
Conductor Size 400 mm
Conductor Type Class 2 Annealed Copper
Insulation Colour White
Insulation Material X-90 XLPE
Insulation Thickness 2 mm
Number of Cores 1 Core
Overall Diameter 31.8 mm
Sheath Colour Black
Sheath Material 5V-90 PVC
Standards AS/NZS 5000.1
Voltage 0.6-1 kV
