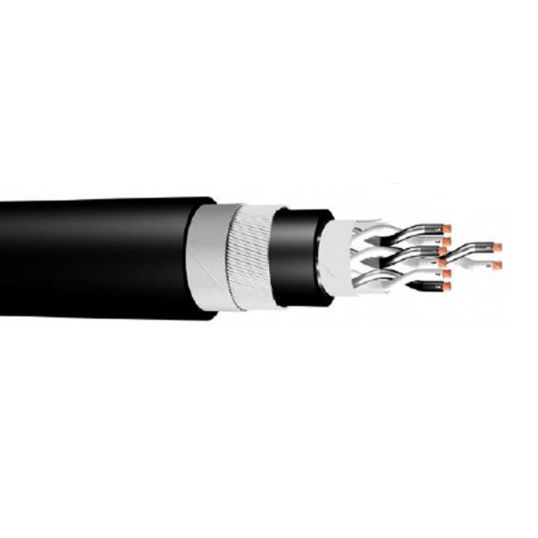

WWC Machlink 110 Instrumentation Cable Armoured 8 Pair Overall Screened 1.5mm PVC/SWA/PVC Black

Description

Instrumentation Cable Armoured, 1.5 mm, Class 2 Annealed Copper, 110 Volt AC/150 Volt DC, 8 Pair, 7/0.5 mm Strands, Overall Screened Screen, 15.1 mm Bedding Diameter, 21.4 mm Overall Diameter, 404 mm During Installation/270 mm After Installation Bend Radius, 0.4 mm Insulation Thickness, 13.6 Ohm/km Conductor Resistance, 140 MOhm/km Insulation Resistance, 100% Screen Coverage, Aluminium Foil/Polyester Tape Screen, Galvanised Steel Wire Armour, Black/White/Red Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -25 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464

Key Specifications

SKU	WWC5508
Brand	WWC
Range Name	Machlink Type 110
Product Type	Instrumentation Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5508
Armour Material	Galvanised Steel Wire
Bedding Diameter	15.1 mm
Bend Radius	404 mm During Installation/270 mm After Installation
Conductor Resistance	13.6 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Class 2 Annealed Copper
Core Colours	Black/White/Red Numerals
Insulation Material	V-90 PVC
Insulation Resistance	140 MOhm/km
Number of Pairs	8 Pair
Insulation Thickness	0.4 mm
Overall Diameter	21.4 mm
Screen Coverage	100%
Screen Format	Overall Screened
Screen Material	Aluminium Foil/Polyester Tape
Sheath Colour	Black
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 1660.5.6 AS/NZS 1660.5.1 UL 2464
Stranding	7/0.5 mm
Voltage	110 Volt AC/150 Volt DC
Temperature	-25 to 90 deg C
