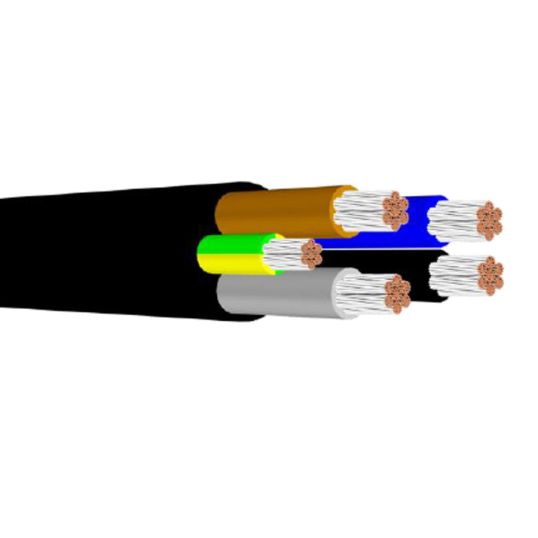

WWC Viperflex H07 BN-F Heavy Duty Flexible Cable 3C+N+E 6mm 0.6/1kV Bare or Tinned Copper EPR/CPE Black

Description

Flexible Cable Heavy Duty, 6 mm, Class 5 Tinned Annealed Copper, 0.6-1 kV, 3 Core + Neutral + Earth, 84/0.3 mm Strands, 5.2 mm Core Diameter, 18 mm Overall Diameter, 1 mm Insulation Thickness, Brown/Black/Blue/Grey/Green/Yellow Core, EPR Insulation, CPE Sheath, Black Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

SKU	WWC5060ERTC
Brand	WWC
Range Name	Viperflex H07 BN-F
Product Type	Flexible Cable Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5060ERTC
Conductor Size	6 mm
Conductor Type	Class 5 Tinned Annealed Copper
Core Colours	Brown/Black/Blue/Grey/Green/Yellow
Core Diameter	5.2 mm
Insulation Material	EPR
Insulation Thickness	1 mm
Number of Cores	3 Core + Neutral + Earth
Overall Diameter	18 mm
Sheath Colour	Black
Sheath Material	CPE
Standards	AS/NZS 5000.1
Temperature	90 deg C
Stranding	84/0.3 mm
Voltage	0.6-1 kV
