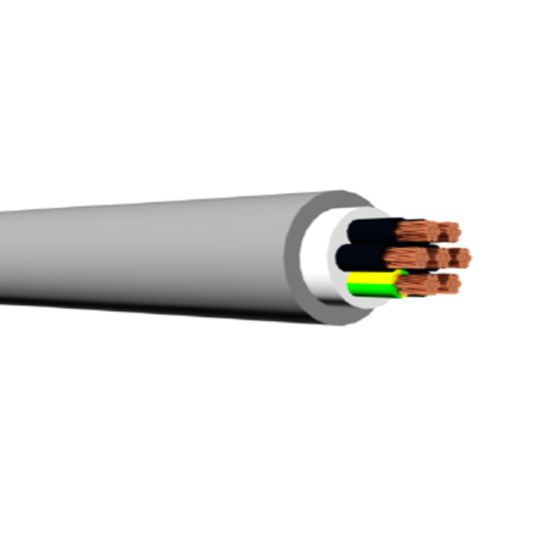

WWC Conflex Flexible Control Cable Unscreened 3 Core & Earth 2.5mm 0.3/0.5kV Copper PVC/PVC Grey

Description

Flexible Control Cable, Unscreened, 3 Core & Earth, 2.5 mm, Class 5 Stranded Bare Copper, 0.3/0.5 kV, 8.9 mm Overall Diameter, Bend Radius: Static - 71.2 mm Flexible - 66.75 mm, V-75 PVC Insulation, V-75 PVC Sheath, Black with White Numbered Green/Yellow Cores, Grey Sheath, Static - -25 to 75 deg C Flexible - -5 to 70 deg C, IEC 60228, VDE 0245, VDE 0295, VDE0293, AS/NZS 1125, AS/NZS 3808

Key Specifications

SKU	WWC2452
Brand	WWC
Range Name	Conflex
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	2452
Bend Radius	Static: 71.2 mm - Flexible: 66.75 mm
Conductor Size	2.5 mm
Conductor Type	Class 5 Stranded Copper
Core Colours	Green/Yellow/Black/White Numerals
Insulation Material	V-75 PVC
Number of Cores	3 Core + Earth
Overall Diameter	8.9 mm
Sheath Colour	Grey
Sheath Material	V-75 PVC
Standards	IEC 60228 VDE 0245 VDE 0295 VDE0293 AS/NZS 1125 AS/NZS 3808
Temperature	Static: -25 to 75 deg C Flexible: -5 to 70 deg C
Voltage	0.3-0.5 kV
