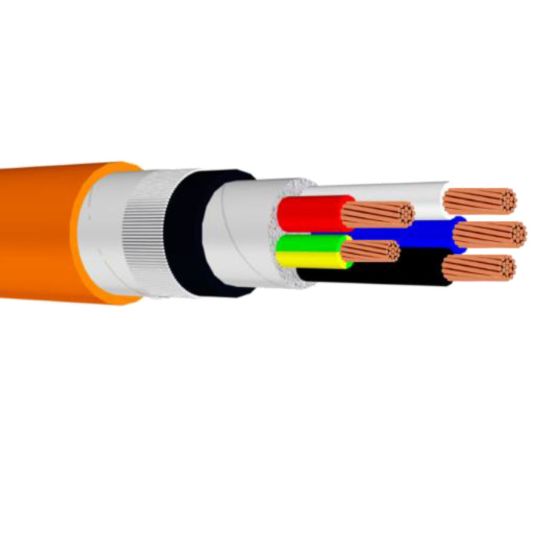

WWC 16 mm Orange Circular Cable Armoured X-90 XLPE/Galvanised Steel Wire/5V-90 PVC 1mtr

Description

Circular Cable, Armoured, 16 mm, Class 2 Annealed Copper, 0.6-1 kV, 4 Core + Earth, 6.2 mm Core Diameter, 4.8 mm Nominal Diameter, 25.8 mm Overall Diameter, 18.4 mm Bedding Diameter, 6 mm Earth Conductor, 1 mtr Length, 0.7 mm Insulation Thickness, DC: 1.15 Ohm/km Conductor Resistance, Galvanised Steel Wire Armour, Red/Black/White/Blue/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, -40 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

SKU	WWC1516
Brand	WWC
Range Name	Vipercon
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1516
Armour Material	Galvanised Steel Wire
Bedding Diameter	18.4 mm
Conductor Resistance	DC: 1.15 Ohm/km
Conductor Type	Class 2 Annealed Copper
Conductor Size	16 mm
Core Colours	Black/Blue/Red/White/Green/Yellow
Core Diameter	6.2 mm
Earth Conductor Size	6 mm
Insulation Material	X-90 XLPE
Insulation Thickness	0.7 mm
Nominal Diameter	4.8 mm
Number of Cores	4 Core + Earth
Overall Diameter	25.8 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV
