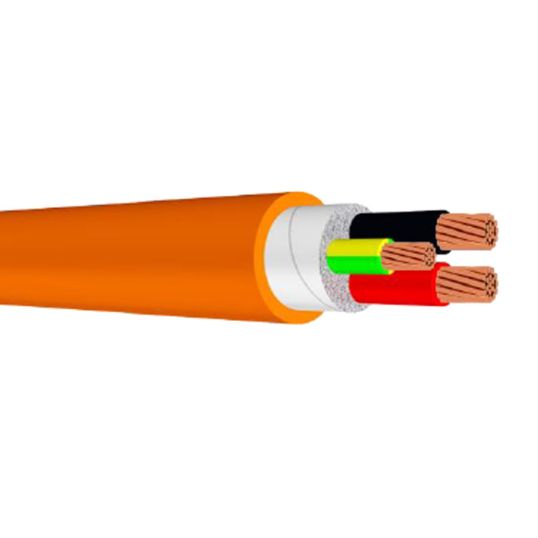

WWC 1.5mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 500mtr

$WWC\WWC_OR_Circ_Power_2C-E.jpg$

Description

Circular Cable, Unarmoured, 1.5mm, Class 2 Annealed Copper, 0.6-1 kV, 2 Core + Earth, 3.2mm Core Diameter, 1.56mm Nominal Diameter, 9.7mm Overall Diameter, 1.5mm Earth Conductor, 500 mtr Length, 0.8mm Insulation Thickness, DC: 13.6 Ohm/km Conductor Resistance, Red/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

SKU	WWC1301UA
Brand	WWC
Range Name	Vipercon
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1301UA
Conductor Resistance	DC: 13.6 Ohm/km
Conductor Size	1.5 mm
Core Colours	Black/Red/Green/Yellow
Conductor Type	Class 2 Annealed Copper
Core Diameter	3.2 mm
Earth Conductor Size	1.5 mm
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Nominal Diameter	1.56 mm
Number of Cores	2 Core + Earth
Overall Diameter	9.7 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Temperature	-25 to 75 deg C
Voltage	0.6-1 kV
