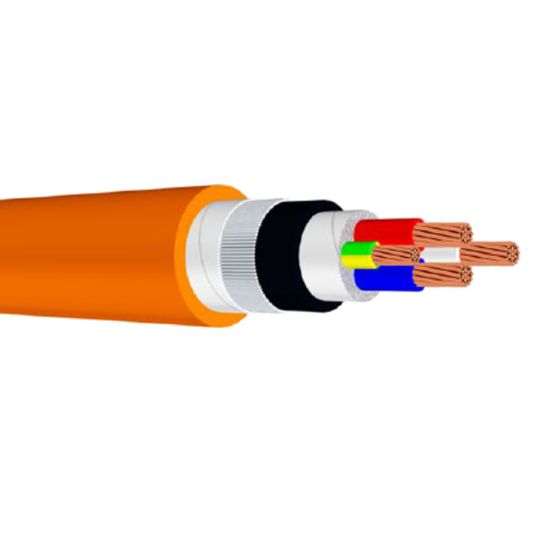

WWC 25 mm Orange Circular Cable Armoured X-90 XLPE/Galvanised Steel Wire/5V-90 PVC 100mtr

Description

Circular Cable, Armoured, 25 mm, Class 2 Annealed Copper, 0.6-1 kV, 3 Core + Earth, 7.8 mm Core Diameter, 6 mm Nominal Diameter, 26.9 mm Overall Diameter, 19.5 mm Bedding Diameter, 6 mm Earth Conductor, 100 mtr Length, 0.9 mm Insulation Thickness, DC: 0.153 Ohm/km Conductor Resistance, Galvanised Steel Wire Armour, Red/Blue/White/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, -40 to 90 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

SKU	WWC1125
Brand	WWC
Range Name	Vipercon
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1125
Armour Material	Galvanised Steel Wire
Bedding Diameter	19.5 mm
Conductor Resistance	DC: 0.153 Ohm/km
Conductor Type	Class 2 Annealed Copper
Conductor Size	25 mm
Core Colours	Red/Blue/White/Green/Yellow
Core Diameter	7.8 mm
Earth Conductor Size	6 mm
Insulation Material	X-90 XLPE
Insulation Thickness	0.9 mm
Nominal Diameter	6 mm
Number of Cores	3 Core + Earth
Overall Diameter	26.9 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV
