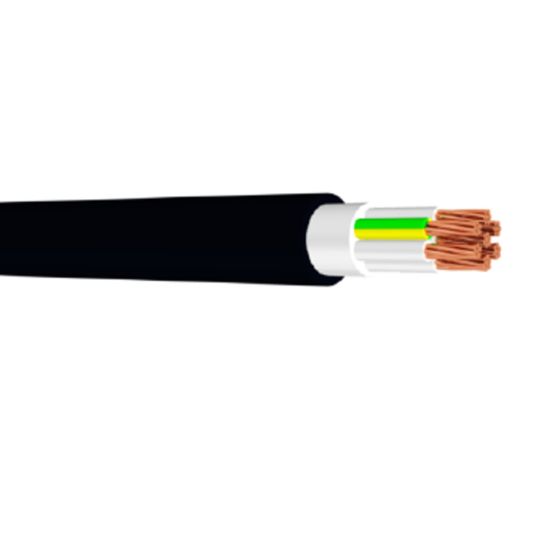

WWC 1.5 mm Black Circular Control Cable Armoured V-90 PVC/Galvanised SWA/5V-90 PVC 1mtr
Loading...
Description
Circular Control Cable, Armoured, 1.5 mm, Class 2 Annealed Copper, 0.6-1 kV, 3 Core + Earth, 3.1 mm Core Diameter, 1.5 mm Earth Conductor, 14.8 mm Overall Diameter, 1 mtr Length, 0.8 mm Insulation Thickness, 9.3 mm Bedding Diameter, Galvanised Steel Wire Armour, White/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Key Specifications
| SKU |
WWC1041
|
|---|---|
| Brand |
WWC
|
| Product Type |
Circular Control Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 1041 |
| Armour Material | Galvanised Steel Wire |
| Bedding Diameter | 9.3 mm |
| Conductor Size | 1.5 mm |
| Conductor Type | Class 2 Annealed Copper |
| Core Colours | White/Green/Yellow |
| Core Diameter | 3.1 mm |
| Earth Conductor Size | 1.5 mm |
| Insulation Material | V-90 PVC |
| Insulation Thickness | 0.8 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 14.8 mm |
| Sheath Colour | Black |
| Sheath Material | 5V-90 PVC |
| Standards | AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6 |
| Temperature | -25 to 75 deg C |
| Voltage | 0.6-1 kV |
