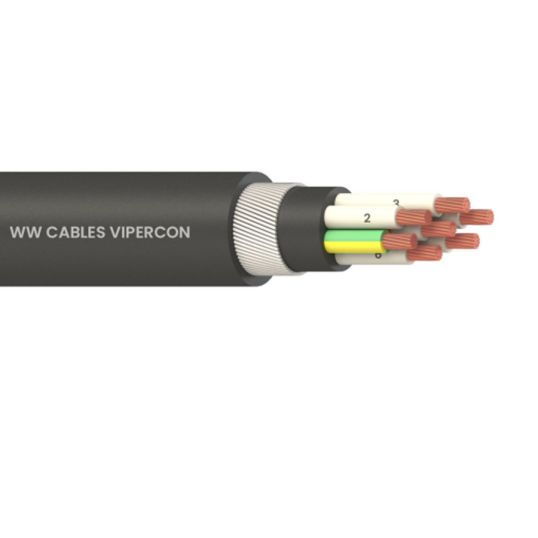

WWC 1.5 mm Black Circular Control Cable Armoured V-90 PVC/SWA/5V-90 PVC 500mtr

$WWC\WWC_1031.jpg$

Description

Circular Control Cable, Armoured, 1.5 mm, Class 2 Stranded Annealed Copper, 0.6-1 kV, 2 Core + Earth, 1.5 mm Earth Conductor, 14 mm Overall Diameter, 500 mtr Length, 13.6 Ohm/km Conductor Resistance, 0.8 mm Insulation Thickness, 261 mm During Installation/174 mm After Installation Bend Radius, Steel Wire Armour, Green/Yellow/White/Black Numerals Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Black Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

SKU	WWC1031
Brand	WWC
Product Type	Circular Control Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1031
Armour Material	Steel Wire
Conductor Resistance	13.6 Ohm/km
Bend Radius	261 mm During Installation/174 mm After Installation
Conductor Size	1.5 mm
Conductor Type	Class 2 Stranded Annealed Copper
Earth Conductor Size	1.5 mm
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Number of Cores	2 Core + Earth
Overall Diameter	14 mm
Sheath Colour	Black
Sheath Material	5V-90 PVC
Temperature	-25 to 75 deg C
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Voltage	0.6-1 kV
