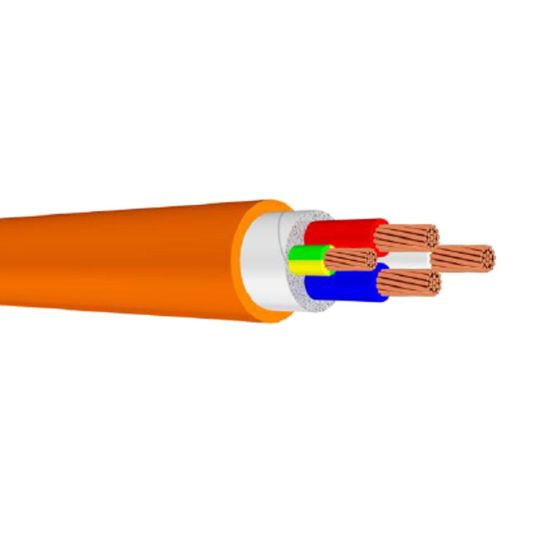

WWC 1.5mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 100mtr

Description

Circular Cable, Unarmoured, 1.5mm, Class 2 Annealed Copper, 450-750 Volt, 3 Core + Earth, 2.8mm Core Diameter, 1.56mm Nominal Diameter, 9.1mm Overall Diameter, 1.5mm Earth Conductor, 100 mtr Length, 0.8mm Insulation Thickness, DC: 13.6 Ohm/km Conductor Resistance, Red/Blue/White/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

SKU	WWC1015UA-47
Brand	WWC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1015UA-47
Conductor Resistance	DC: 13.6 Ohm/km
Conductor Size	1.5 mm
Conductor Type	Class 2 Annealed Copper
Core Colours	Red/Blue/White/Green/Yellow
Core Diameter	2.8 mm
Insulation Thickness	0.8 mm
Insulation Material	V-90 PVC
Earth Conductor Size	1.5 mm
Nominal Diameter	1.56 mm
Number of Cores	3 Core + Earth
Overall Diameter	9.1 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Temperature	-25 to 75 deg C
Voltage	450-750 Volt
