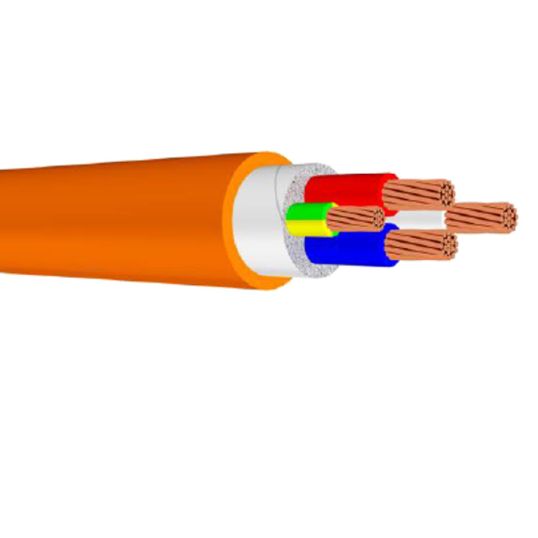

WWC 10mm Orange Circular Cable Unarmoured V-90 PVC/5V-90 PVC 1mtr

Description

Circular Cable, Unarmoured, 10mm, Class 2 Annealed Copper, 0.6-1 kV, 3 Core + Earth, 5.8mm Core Diameter, 3.80mm Nominal Diameter, 16.9mm Overall Diameter, 4mm Earth Conductor, 1 mtr Length, 1mm Insulation Thickness, DC: 1.83 Ohm/km Conductor Resistance, Red/Blue/White/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

SKU	WWC1010UA
Brand	WWC
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1010UA
Conductor Resistance	DC: 1.83 Ohm/km
Conductor Size	10 mm
Conductor Type	Class 2 Annealed Copper
Core Colours	Red/Blue/White/Green/Yellow
Core Diameter	5.8 mm
Insulation Thickness	1 mm
Insulation Material	V-90 PVC
Earth Conductor Size	4 mm
Nominal Diameter	3.80 mm
Number of Cores	3 Core + Earth
Overall Diameter	16.9 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Temperature	-25 to 75 deg C
Voltage	0.6-1 kV
