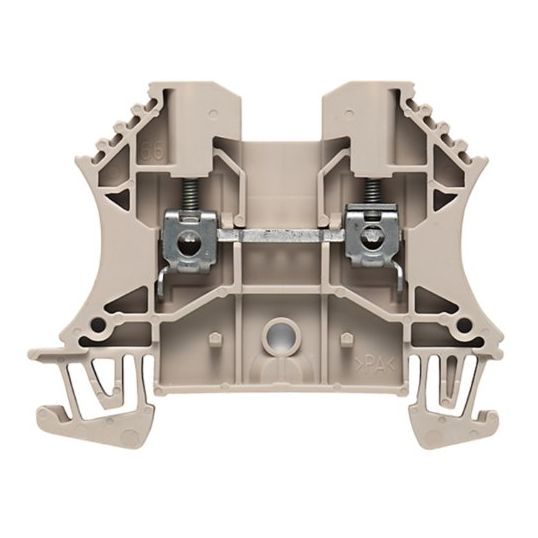

Weidmuller Rail Feed-Through Terminal Block WDU 2.5 2.5mm 2 Wire Screw Connection Wemid Dark Beige

$Weidmuller\Weidmuller_1020000000.jpg$

Description

Feed Through Terminal Block, 2.5 mm, 2 Conductors, 800 Volt, 24 Amp, 10 mm Wire Strip Length, 0.4-0.8 Nm Tightening Torque, 2 Conductor Wiring Format, 2 Connection Points, 1 Potential, 1 Level, Screw Terminal, Snap In Mounting, Wemid Insulation, Beige, -60 to 130 deg C, UL94 V0 Flammability, 60 mm Height, 5.1 mm Width, 46.5 mm Depth

Key Specifications

Barcode (EAN-13)	4008190099633
SKU	WEI1020000000
Brand	Weidmuller
Product Type	Termninal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	1020000000
Current Rating	24 Amp
Colour	Beige
Conductor Size	2.5mm
Depth	46.5 mm
Flammability	UL94 V0
Height	60 mm
Insulation Material	Wemid
Number of Conductors	2
Mounting Method	Snap In
Number of Connection Points	2
Number of Levels	1
Number of Potentials	1
Temperature	-60 to 130 deg C
Tightening Torque	0.4-0.8 Nm
Terminal Type	Screw
Voltage Rating	800 Volt
Width	5.1 mm
Wiring Format	2 Conductor
Wire Strip Length	10 mm
