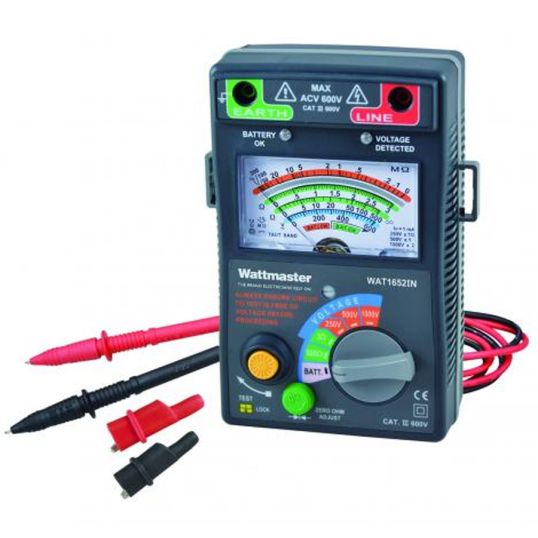

Wattmaster Analogue Insulation Tester

chevron-left
loader
Loading...

Description

chevron-down
Analogue Insulation Tester, 600 Volt AC

Key Specifications

chevron-down
Barcode (EAN-13)
9328587019828
SKU
WAT1652IN
Brand
Wattmaster

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • High quality Taut Band movement
  • Three insulation test voltages (DC): 250V, 500V, 1000V
  • Two continuity test on “low ohmsin: 3 & 500
  • AC voltmeter with linear scale up to 600 Vac
  • 200mA short circuit current for continuity
  • 1mA test current on insulation test at nominal voltage
  • Automatic discharge of capacitive and inductive circuit with charge stored in the circuit under test
  • Live warning and display of external voltage presence
  • Fuse, air gap, crowbar and overload protected
  • On line battery monitoring shows if battery is ok
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product WAT1652IN
Product Type simple
Voltage 600 Volt AC
