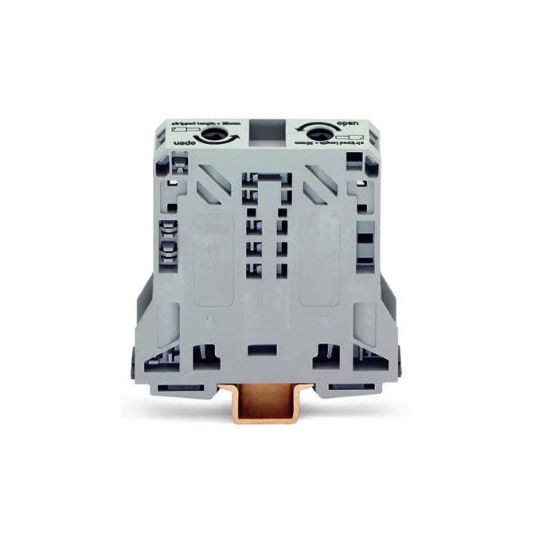

Wago Insulated Terminal Block 2 Way 2 Tunnel 2 Wire 150A 600V DIN-Rail Polyamide (PA66) Grey
Loading...
Description
Insulated Terminal Block, 600 Volt, 150 Amp, 10-30 mm Connector Capacity, Cage Clamp Connection, 2 Tunnel, 2 Way, 2 Wire, DIN Rail Mounting, Copper Conductor, Nylon PA66 Insulation, Grey, 94 mm Length, 20 mm Width, 87 mm Height
Key Specifications
| Barcode (EAN-13) |
4044918660426
|
|---|---|
| SKU |
WAG285-150
|
| Brand |
Wago
|
| Product Type |
Insulated Terminal Blocks
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 5 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 285-150 |
| Colour | Grey |
| Conductor Material | Copper |
| Connector Capacity | 10-30 mm |
| Connection Type | Cage Clamp |
| Current | 150 Amp |
| Height | 87 mm |
| Insulation Material | Nylon |
| Number of Tunnels | 2 Tunnel |
| Number of Wires | 2 Wires |
| Number Of Ways | 2 Way |
| Mounting Method | DIN Rail |
| Voltage | 600 Volt |
| Width | 20 mm |
