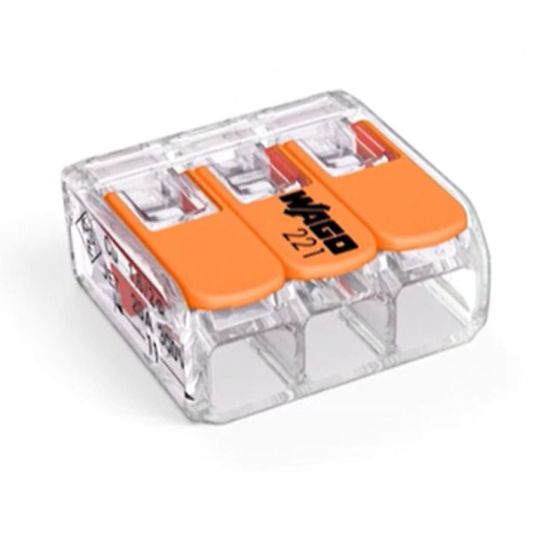

Wago Splicing Connector 2 Wire 6mm 30A 450V w/Operating Lever Clear

$Wago\Wago_221-612.jpg$

Description

Splicing Connector, 450 Volt, 41 Amp, 6 mm Connector Capacity, Cage Clamp Connection, 2 Pole, 2 Wire, Lever Actuator, Copper Conductor, Transparent, 105 deg C, 21.1 mm Length, 16 mm Width, 10.1 mm Height

Key Specifications

Barcode (EAN-13)	4055143704168
SKU	WAG221-612
Brand	Wago
Range Name	Compact
Product Type	Cable Connectors

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Ease of use pull the lever up, insert a conductor and push the lever back down Easily terminate conductors from 0.14 to 4 sq-mm Connect solid, stranded and fine-stranded conductors Time savings for installers and device manufacturers Industrial, communications and networking, lighting, security, signalling, HVAC application Quickly install devices with higher levels of power consumption Safely install long cable runs with larger conductor cross sections Mounting carrier for installation conforms to standards Custom carriers are possible
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	221-612
Actuator Type	Lever
Colour	Transparent
Conductor Material	Copper
Connector Capacity	6 mm
Connection Type	Cage Clamp
Current	41 Amp
Height	10.1 mm
Number Of Poles	2 Pole
Number of Wires	2 Wires
Temperature	105 deg C
Voltage	450 Volt
Width	16 mm
