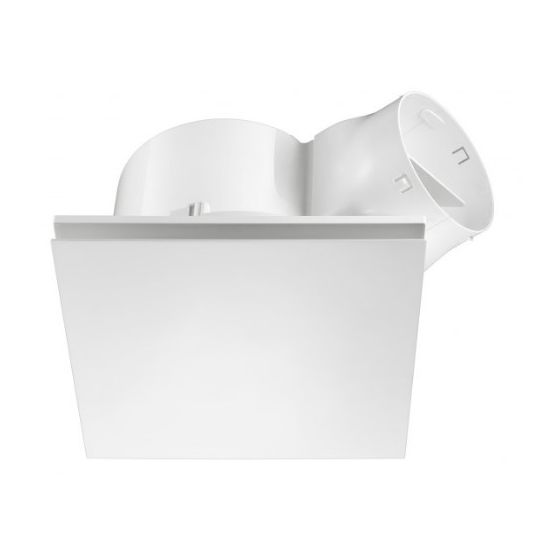

Airbus 300 Maximum Airflow Premium Quality Side Ducted Exhaust Fan Extra Low Profile Square
Loading...
Description
Premium quality high performance exhaust unit designed to maintain airflows over extended duct runs.
Key Specifications
| Barcode (EAN-13) |
9339310008231
|
|---|---|
| SKU |
VNTPVPX300WHSQ
|
| Brand |
Ventair
|
| Range Name |
Airbus 300
|
| Product Type |
Exhaust fans
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Features |
|
|---|---|
| Standard Pack Size | 1 |
| UNSPSC Class | 40101600 |
| UOM | EA |
| Vendor Product | PVPX300WHSQ |
| Air Flow Cubic Meters per Hour | 550 cu-m/hr |
| Cut-Out Size | 296 mm |
| Colour | White |
| Fan Size | 300 mm |
| Duct Size | 150 mm |
| Frequency | 50 Hz |
| Grill Size | 326 mm x 326 mm |
| Height | 195 mm |
| IP Rating | IPX4 |
| Motor Type | Ball Bearing |
| Min. Install Depth | 220 mm |
| Noise Level | 42 dBA |
| Wattage | 106 Watt |
| Shape | Square |
| Voltage | 220-240 Volt |
