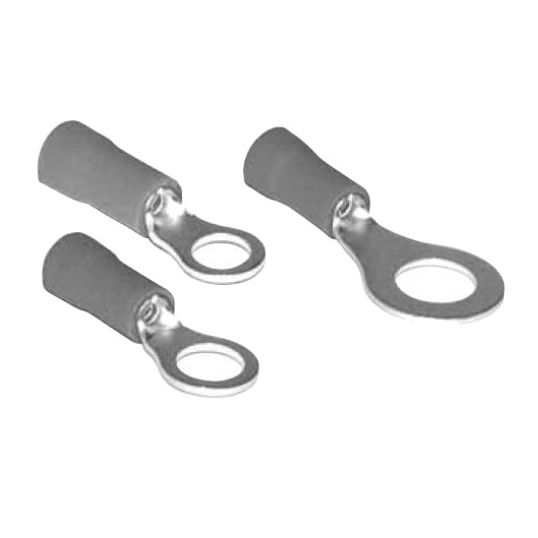

Utilux Ring Terminal Insulated Double Grip 0.5-1.5mm M6 Stud Red 26.8mm OAL

Description

Ring Terminal, Insulated, Double Grip, Conductor Size: 0.5-1.5 mm, Stud Size: M6, Terminal Size: 22-16 AWG, Crimping Die: 76A, 11C, 11B, 63-4B, 102, 120, Body Material: Copper, Insulation Material: PVC, Red Insulation, Tin Electroplated Finish, 26.8mm Overall Length, 11.6mm Lug Width, 0.7mm Lug Thickness, 6.4mm Lug Inside Diameter, Barrel Length: 10mm, Max. Insulation Diameter: 3.5mm, Merch Pack

Key Specifications

Barcode (EAN-13)	9313988539419
SKU	UTIRRM6/M
Brand	Utilux
Range Name	UtiLug SuperGrip
Product Type	Forked & Ring Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Copper electro tinned to minimise corrosion PVC insulation for insulation support
Standard Pack Size	20
UNSPSC Class	39121400
UOM	PK
Vendor Product	UTIRRM6/M
Barrel Length	10 mm
Body Material	Copper
Conductor Size	0.5-1.5mm
Crimping Die	76A/11C/11B/63-4B/102/120
Insulation Colour	Red
Finish	Tin Electroplated
Lug Inside Diameter	6.4 mm
Insulation Material	PVC
Insulation Diameter	3.5 mm
Lug Thickness	0.7 mm
Lug Width	11.6 mm
Pack Size	Merch Pack
Overall Length	26.8 mm
Stud Size	M6 Stud
Terminal Size	22-16 AWG
