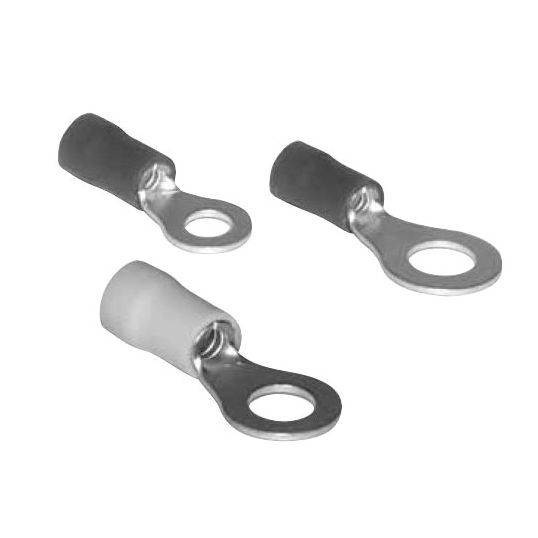

Utilux Ring Terminal Insulated Double Grip 0.5-1.5mm M10 Stud Red 31mm OAL

$Utilux\Utilux_Ring_DG.jpg$

Description

Ring Terminal, Insulated, Double Grip, Conductor Size: 0.5-1.5 mm, Stud Size: M10, Terminal Size: 22-16 AWG, Barrel Type: Serrated, Crimping Die: 11C, 11B, 76B, 63-4B, 102, 120, Body Material: Copper, Red Insulation, Tin Electroplated Finish, 31mm Overall Length, 13.6mm Lug Width, 0.7mm Lug Thickness, 10.5mm Lug Inside Diameter, Barrel Length: 10.5mm, Max. Insulation Diameter: 3.5mm, 100 Pack

Key Specifications

Barcode (EAN-13)	9313988011885
SKU	UTIH4240/100
Brand	Utilux
Range Name	UtiLug SuperGrip
Product Type	Forked & Ring Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Fitted with a copper ferrule and pre-insulated for secure insulation support Copper electro tinned to minimise corrosion Serrated barrel provides secure mechanical and electrical connection
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	UTIH4240/100
Barrel Type	Serrated
Barrel Length	10.5 mm
Crimping Die	11C/11B/76B/63-4B/102/120
Body Material	Copper
Conductor Size	0.5-1.5mm
Finish	Tin Electroplated
Insulation Diameter	3.5 mm
Insulation Colour	Red
Lug Thickness	0.7 mm
Lug Inside Diameter	10.5 mm
Lug Width	13.6 mm
Overall Length	31 mm
Pack Size	100 Pack
Terminal Size	22-16 AWG
Stud Size	M10 Stud
