Tycab Flexible Power Cable 1 Core 16mm 0.6/1kV Plain Copper V90HT PVC Black

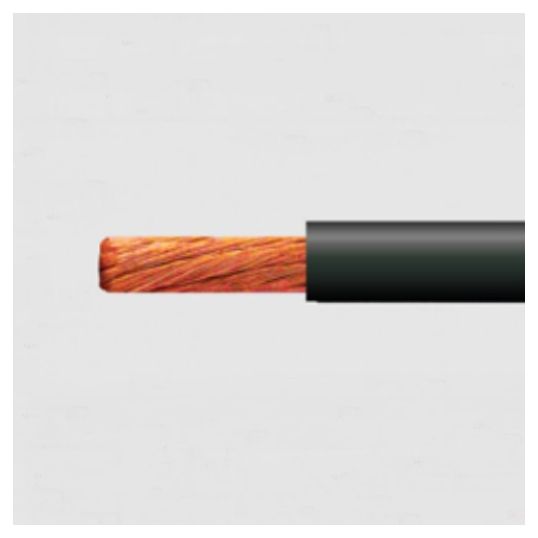

$Tycab\Tycab_ZBD.jpg$

Description

Flexible Cable, 16 mm, Class 6 Oxygen Free Copper, 0.6-1 kV, 69 Amp, 1 Core, 511/0.2 mm Strands, 7.3 mm Overall Diameter, Static 29.2 mm Bend Radius, 1 mm Insulation Thickness, 1.21 Ohm/km Conductor Resistance, V-90HT PVC RoHS Compliant Insulation, Black Insulation, Unsheathed Sheath, 75 deg C, AS/NZS 3008.1.1:2009 AS/NZS 3008

Key Specifications

Barcode (EAN-13)	9320943017639
SKU	TYCZBD151102-BK-100
Brand	Tycab
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121500
UOM	MTR
Vendor Product	ZBD151102-BK-100
Conductor Resistance	1.21 Ohm/km
Bend Radius	Static 29.2 mm
Conductor Size	16 mm
Conductor Type	Class 6 Oxygen Free Copper
Current	69 Amp
Insulation Colour	Black
Insulation Material	V-90HT PVC RoHS Compliant
Insulation Thickness	1 mm
Number of Cores	1 Core
Overall Diameter	7.3 mm
Sheath Material	Unsheathed
Standards	AS/NZS 3008.1.1:2009 AS/NZS 3008
Stranding	511/0.2 mm
Voltage	0.6-1 kV
Temperature	75 deg C
