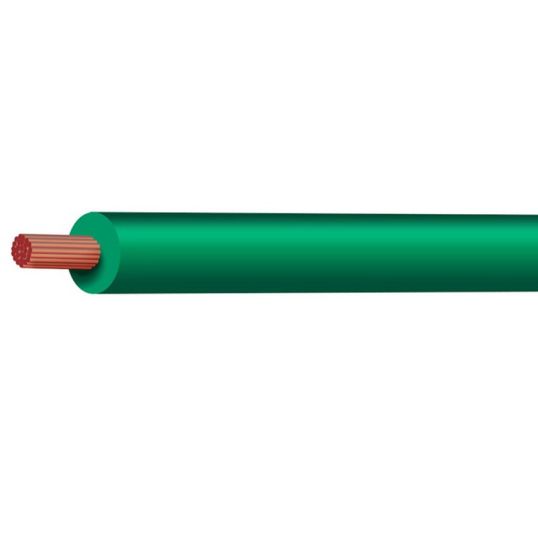

Tycab Automotive Cable Single Insulated 1 Core 3mm V90 PVC Green
Loading...
Description
Automotive Cable, Single Insulated, 1 Core, 1.13 mm, 3 mm, Oxygen Free Plain Copper, 20 Amp, 14/0.32 mm Strands, 2.2 mm Overall Diameter, 0.4 mm Insulation Thickness, 16.5 Ohm/km Conductor Resistance, V-90 PVC Insulation, Unsheathed, Green Insulation, 30 to 70 deg C
Key Specifications
| Barcode (EAN-13) |
9320943005117
|
|---|---|
| SKU |
TYCASC11603-GN-30
|
| Brand |
Tycab
|
| Product Type |
Automotive Cable Single Insulated
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 30 |
|---|---|
| UNSPSC Class | 26121800 |
| UOM | MTR |
| Vendor Product | ASC11603-GN-30 |
| Conductor Size | 1.13 mm |
| Conductor Resistance | 16.5 Ohm/km |
| Conductor Size (mm) | 3.0 mm |
| Conductor Type | Oxygen Free Copper |
| Current | 20 Amp |
| Insulation Material | V-90 PVC |
| Insulation Colour | Green |
| Insulation Thickness | 0.4 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 2.2 mm |
| Sheath Material | Unsheathed |
| Stranding | 14/0.32 mm |
| Temperature | 30 to 70 deg C |
