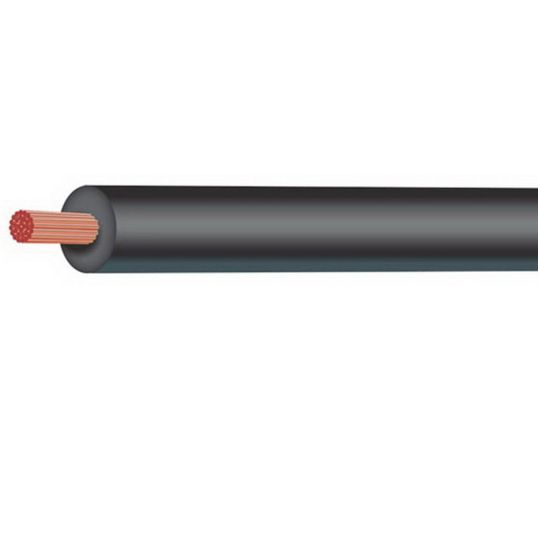

Tycab Automotive Cable Single Insulated 1 Core 3mm V90 PVC Black

$Tycab\Tycab_ASC11603-BK.jpg$

Description

Automotive Cable Single Insulated, 1.13 mm, 3 mm Conductor Size (mm), Oxygen Free Copper, 50 Volt AC/120 Volt DC, 20 Amp, 1 Core, 14/0.32 mm Strands, 2.2 mm Overall Diameter, 0.4 mm Insulation Thickness, 16.5 Ohm/km Conductor Resistance, V-90 PVC Insulation, Black Insulation, Unsheathed Sheath, 30 to 70 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9320943000884
SKU	TYCASC11603-BK-100
Brand	Tycab
Product Type	Automotive Cable Single Insulated

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121800
UOM	MTR
Vendor Product	ASC11603-BK-100
Conductor Resistance	16.5 Ohm/km
Conductor Type	Oxygen Free Copper
Conductor Size	1.13 mm
Current	20 Amp
Insulation Thickness	0.4 mm
Insulation Colour	Black
Number of Cores	1 Core
Insulation Material	V-90 PVC
Overall Diameter	2.2 mm
Sheath Material	Unsheathed
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	14/0.32 mm
Voltage	50 Volt AC/120 Volt DC
Temperature	30 to 70 deg C
