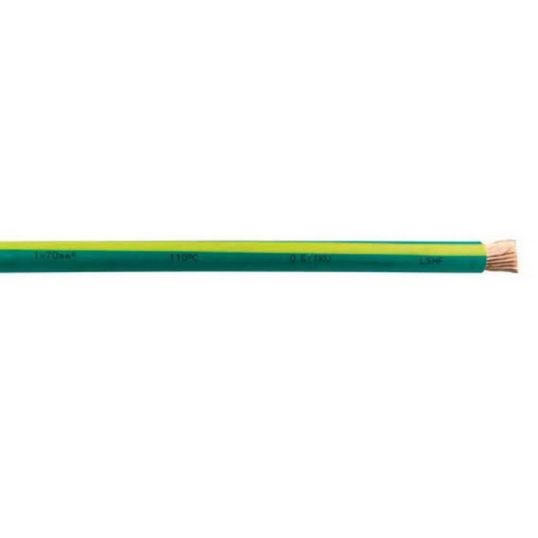

Treotham 25mm Green/Yellow Flexible Wire X-HF-110

$Treotham\Treotham_Flexible_Earth_TA4.jpg$

Description

Flexible Wire, 25 mm, Class 6 Annealed Bare Copper, 0.6-1 kV, 1 Core, 800/0.2 mm Strands, 8.7 mm Overall Diameter, 52.2 mm Bend Radius, 0.9 mm Insulation Thickness, 0.78 Ohm/km Conductor Resistance, X-HF-110 Insulation, Green/Yellow Insulation, Unsheathed, -40 to 110 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 IEC 60332-1

Key Specifications

SKU	TRETA4.0250.01
Brand	Treotham

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low Smoke Halogen Free (LSHF, LS0H, LSZH) UV resistant Flame Retardant
Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	TA4.0250.01
Bend Radius	52.2 mm
Conductor Resistance	0.78 Ohm/km
Conductor Size	25 mm
Conductor Type	Class 6 Annealed Bare Copper
Insulation Colour	Green/Yellow
Insulation Material	X-HF-110
Insulation Thickness	0.9 mm
Number of Cores	1 Core
Overall Diameter	8.7 mm
Sheath Material	Unsheathed
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 IEC 60332-1
Stranding	800/0.2 mm
Temperature	-40 to 110 deg C
Voltage	0.6-1 kV
