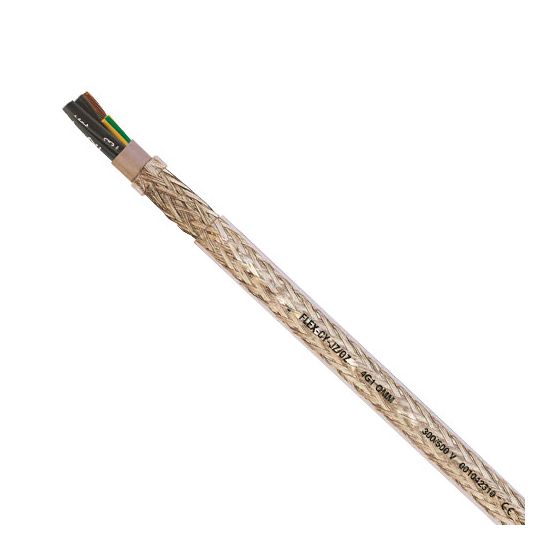

Treotham Treoflex CY-JZ Flexible Control Cable Screened 2 Core+Earth 1.5mm 300/500V Copper PVC/PVC Clear

Description

Flexible Control Cable, 1.5 mm, Class 5 Bare Copper, 300-500 Volt, 3 Core + Earth, 9 mm Overall Diameter, Static 54 mm Flexible 135 mm Bend Radius, >20 MOhm/km Insulation Resistance, 85% Screen Coverage, Tinned Copper Braid Screen, Black/Green/Yellow/White Numerals Core, PVC Insulation, PVC Sheath, Clear Sheath, Static -40 to 80 deg C Flexible -15 to 70 deg C, DIN VDE 0295 IEC 60228

Key Specifications

SKU	TRETA30.0015.03
Brand	Treotham
Range Name	Treoflex
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TA30.0015.03
Bend Radius	Static 54 mm - Flexible 135 mm
Conductor Size	1.5 mm
Conductor Type	Class 5 Bare Copper
Core Colours	Black/Green/Yellow/White Numerals
Insulation Material	PVC
Insulation Resistance	>20 MOhm/km
Number of Cores	3 Core + Earth
Overall Diameter	9 mm
Screen Coverage	85%
Screen Material	Tinned Copper Braid
Sheath Colour	Clear
Sheath Material	PVC
Standards	DIN VDE 0295 IEC 60228
Temperature	Static -40 to 80 deg C Flexible -15 to 70 deg C
Voltage	300-500 Volt
