Tonglin Solar Cable DC 1C 4mm 56/0.285mm XLPE XLPE 100m 1500V 2.46mm 5 x d 0.7mm 0.8mm >=150% 10.3Mpa 5.09Ohm/km

Name: Solar Cable DC 1C 4mm 56/0.285mm XLPE XLPE 100m 1500V
SKU: TON4SDC
Availability: InStock

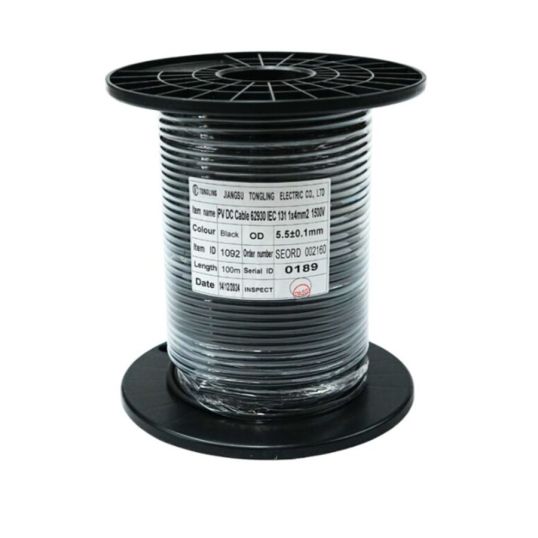

$Tonglin\Tonglin_TON4SDC.JPG$

Description

Solar Cable DC, 1500 Volt, 4 mm Conductor, 1 Core, 56/0.285 mm Stranding, 2.46 mm Overall Diameter, 100 mtr Length, 5 x d Bend Radius, 0.7 mm Insulation Thickness, 0.8 mm Sheath Thickness, >=150% Elongation, >=10.3 Mpa Tensile Strength, 5.09 Ohm/km Conductor, Tinned Copper Conductor, XLPE Insulation

Key Specifications

SKU	TON4SDC
Brand	Tonglin
Range Name	DC Cable
Product Type	Solar Cable DC

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TON4SDC
Bend Radius	5 x d
Conductor Resistance	5.09 Ohm/km
Conductor Size	4 mm
Conductor Material	Tinned Copper
Elongation	>=150%
Insulation Material	XLPE
Insulation Resistance	580 MOhm/km at 20 deg C/0.58 MOhm/km at 90 deg C
Insulation Thickness	0.7 mm
Number of Cores	1 Core
Overall Diameter	2.46 mm
Sheath Material	XLPE
Sheath Thickness	0.8 mm
Standards	IEC 62930
Stranding	56/0.285 mm
Voltage	1500 Volt
Temperature	-40 to 120 deg C
Tensile Strength	>=10.3 Mpa
