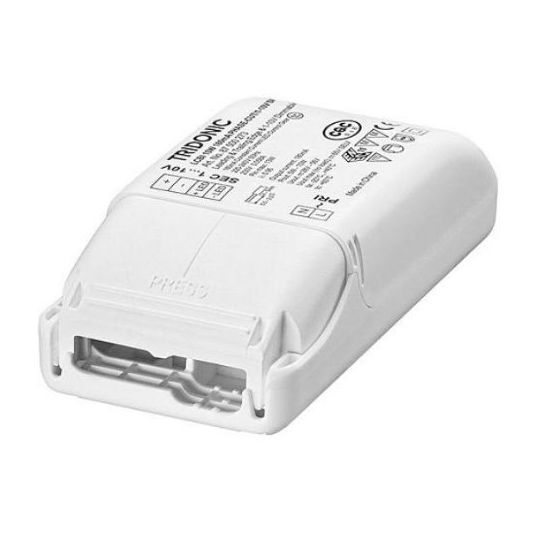

Tridonic Electronic Transformer 20W 220-240V Polycarbonate Casing IP20 White 102mm 20W 350mA Phase-Cut/1-10V Luminaries

Description

Electronic Transformer, LED, 220-240 Volt, 20 Watt, 50 Hz, Ballast Factor: 0.95, Dimmable. IP20, For Use With: LCBI 20 Watt 350mA Phase-Cut/1-10 Volt Luminaries, Polycarbonate Casing, White, -20 to 40 deg C, 30 mm Height, 51 mm Width, 102 mm Length

Key Specifications

Barcode (EAN-13)	9300736754798
SKU	THN87500276
Brand	Tridonic
Product Type	Lighting Spares

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Independent dimmable LED control gear Constant current LED control gear Output current 350 mA Max. output power 19 Watt Dimmable via leading edge and trailing edge phase dimmers Dimmable via 1 to 10 Volt Output dimmed analogue (current amplitude) Dimming range type 10 to 100% (depending on dimmer) For luminaries of protection class I and protection class II For luminaries withM and MM as per EN 60598, VDE 0710 and VDE 0711
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	87500276
Ballast Factor	0.95
Colour	White
Dimmable	Dimmable
Frequency	50 Hz
For Use With	LCBI 20 Watt 350mA Phase-Cut 1-10 Volt Luminaries
Height	30 mm
Lamp Type	LED
IP Rating	IP20
Material	Polycarbonate
Temperature	-20 to 40 deg C
Voltage	220-240 Volt
Wattage	20 Watt
Width	51 mm
