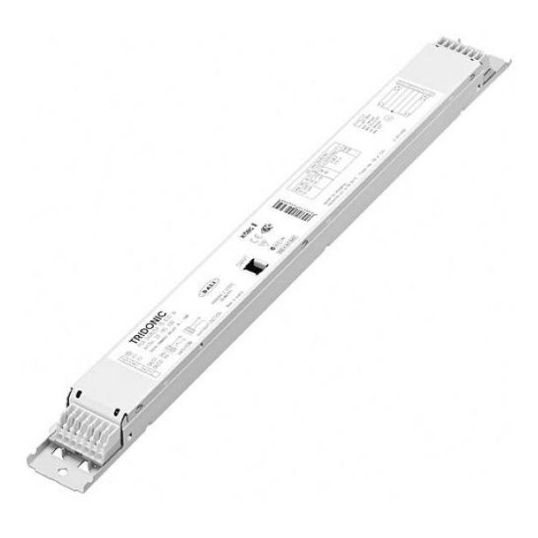

Tridonic Electronic Transformer 220-240V IP20 360mm F/1x28/54 T5 Eco 1 Lamp Luminaire

$Tridonic\Tridonic_221850_221851.jpg$

Description

Electronic Transformer, T5 Fluorescent, 220-240 Volt, 14/80 Watt, 50/60 Hz, 0.95 Ballast Factor, Dimmable, IP20, For Use With 1x28-54 T5 Eco 1 Lamp Luminaire, 25 to 75 deg C, 360 mm Length, 30 mm Width, 21 mm Height

Key Specifications

Barcode (EAN-13)	9006210355283
SKU	THN22185099
Brand	Tridonic
Product Type	Lighting Spares

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Processor-controlled ballast with xitec II inside Highest possible energy class CELMA EEI =A1 BAT Noise-free precise control via DALI or DSI signal, switch DIM or corridor FUNCTION Nominal life-time up to 100000 hrs (at ta 50 deg C with a failure rate <=0 .2% Per 1000 hrs) Multi lamp management EN 55015, EN 60929, EN 61000-3-2, EN 61347-2-3, EN 61547, Acc. To EN 50172 for emergency light installations, EN 50172, IEC 60929, IEC 61000-3-2, IEC 61347-2-3, IEC 61547, IEC 62386 (according to DALi standard V1) EL, EAC, C Tick,CE, ENEC, Rohs
Standard Pack Size	1
UNSPSC Class	39101900
UOM	EA
Vendor Product	22185099
Ballast Factor	0.95
Dimmable	Dimmable
Height	21 mm
For Use With	1x28-54 T5 Eco 1 Lamp Luminaire
Frequency	50/60 Hz
Lamp Type	T5 Fluorescent
IP Rating	IP20
Voltage	220-240 Volt
Temperature	25 to 75 deg C
Width	30 mm
