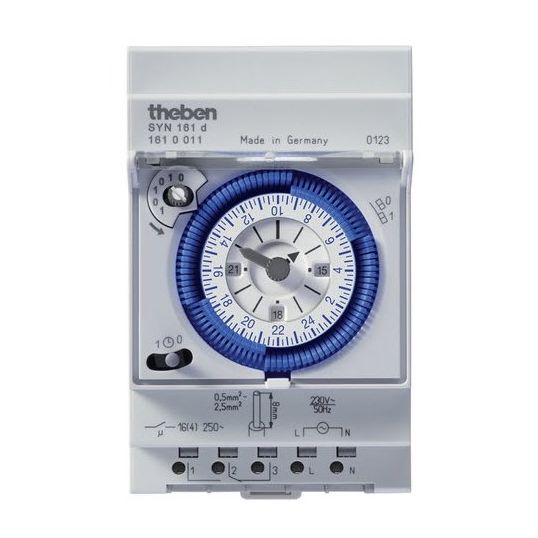

Theben Time Switch Analogue 24 Hour 1 Channel 230VAC 16A CO DIN Rail Mount

Description

Time Switch Analogue 24 Hour, 230 VAC, 16 Amp Switching Capacity, 50 Hz, 3 Modules, 1 Channels, DuoFix Spring Terminal, CO, 0.5-2.5 mm Terminal Capacity, IP20, DIN Rail, Surface/Panel,-20 to 55 deg C, 128.2mm Height x 65.6mm Width x 70.5mm Depth

Key Specifications

SKU	THBSYN161D
Brand	Theben
Product Type	Time Switches Analogue

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	1 channel Daily program Without power reserve 96 switching segments Synchronised with mains Shortest switching time: 15 min Clock hands for time display and in addition 12/24 hr recognition Simple summer/winter time correction Time can be changed clockwise or anti-clockwise DuoFix spring terminals
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	1610011
Connection Type	DuoFix Spring Terminal
Contact Type	Changeover
Frequency	50 Hz
Modules	3 Module
Dimensions	128.2 mm Height x 65.6 mm Width x 70.5 mm Depth
IP Rating	IP20
Mounting Method	DIN Rail/Surface/Panel
Number of Channels	1 Channel
Switching Capacity	16 Amp
Temperature	-20 to 55 deg C
Terminal Capacity	0.5-2.5 sq-mm
Voltage	230 Volt
