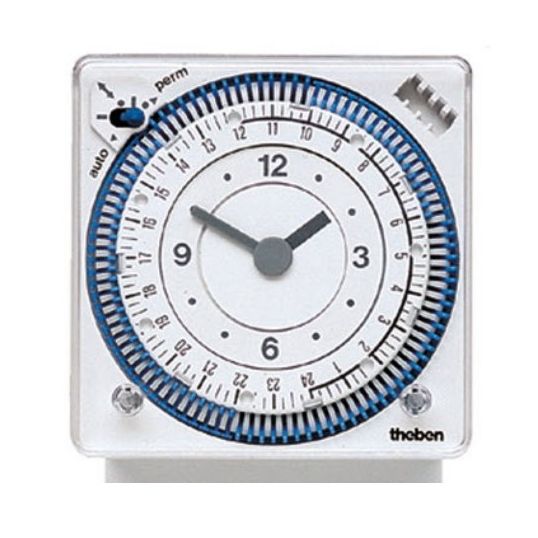

Theben Time Switch Analogue 24 Hour Reserve 1 Channel 230VAC 10A CO DIN Rail Mount

$Theben\Theben_SUL189S.jpg$

Description

Time Switch Analogue 24 Hour Reserve, 230 VAC, 10 Amp Switching Capacity, 50-60 Hz, 1 Channels, Screw, CO, IP20, DIN Rail,-10 to 55 deg C, 104mm Height x 69mm Width x 72mm Depth

Key Specifications

Barcode (EAN-13)	4003468180631
SKU	THBSUL189S
Brand	Theben
Product Type	Time Switches Analogue

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	1 channel Daily program With power reserve (NiMH rechargeable battery) 96 switching segments Quartz controlled Shortest switching time: 15 min Clock hands for time display Switching pre-selection Permanent ON/OFF switch Switching status display
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	1890801
Connection Type	Screw
Contact Type	Changeover
Dimensions	104 mm Height x 69 mm Width x 72 mm Depth
IP Rating	IP20
Frequency	50-60 Hz
Number of Channels	1 Channel
Mounting Method	DIN Rail
Switching Capacity	10 Amp
Temperature	-10 to 55 deg C
Voltage	230 Volt
