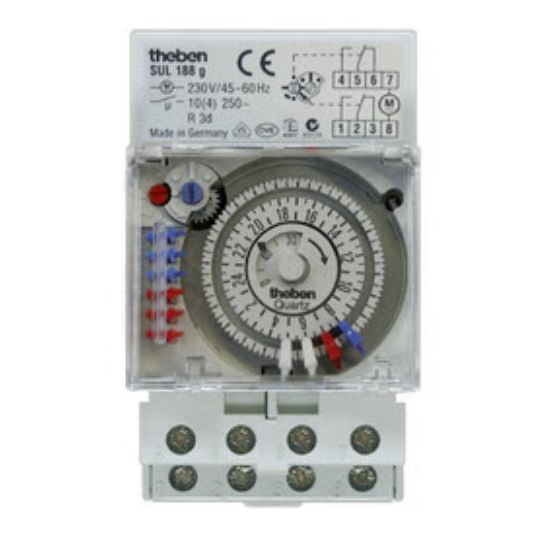

Theben Time Switch Analogue 24 Hour Reserve 2 Channel 230VAC 10A 3 Module CO DIN Rail Mount

Description

Time Switch Analogue 24 Hour Reserve, 230 VAC, 10 Amp Switching Capacity, 45-60 Hz, 3 Modules, 2 Channels, Screw, CO, IP20, DIN Rail,-20 to 55 deg C, 110mm Height x 65.5mm Width x 54mm Depth

Key Specifications

Barcode (EAN-13)	4003468181003
SKU	THBSUL188G
Brand	Theben
Product Type	Time Switches Analogue

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	2 channel Daily program Fine adjustment to set the time to the minute Shortest switching time: 30 min 10 tappets included in delivery With power reserve (NiMH rechargeable battery) Quartz controlled Tappets Screw terminals Switching status display
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	1880033
Connection Type	Screw
Contact Type	Changeover
Frequency	45-60 Hz
Modules	3 Module
Dimensions	110 mm Height x 65.5 mm Width x 54 mm Depth
IP Rating	IP20
Mounting Method	DIN Rail
Number of Channels	2 Channel
Switching Capacity	10 Amp
Temperature	-20 to 55 deg C
Voltage	230 Volt
