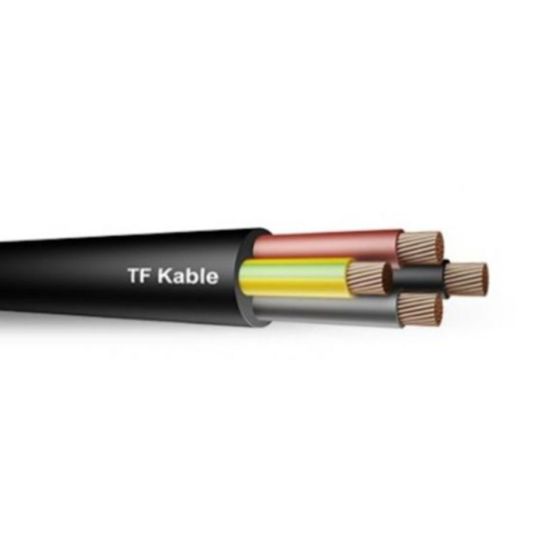

Tele Fonika H07 RN-F Heavy Duty Flexible Cable 3 Core & Earth 4mm 0.6/1kV Tinned Copper EPR/CPE Black

Description

Flexible Cable, Heavy Duty, 3 Core & Earth, 4 mm, Class 5 Tinned Copper, 0.6/1 kV, 14.3 mm Overall Diameter, Bend Radius: Static - 57.2 mm Flexible - 71.5 mm, EPR Insulation, CPE Sheath, Brown. Black. Grey. Green/Yellow Cores, Black Sheath, -40 to 90 deg C, AS/NZS 5000.1

Key Specifications

SKU	TFKG-022982
Brand	Tele Fonika Kables
Product Type	Flexible Cable Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Submersible to 500 metres UV-resistant Flame retardant Oil resistant Tinned conductors
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	G-022982-NLA
Bend Radius	Static: 57.2 mm - Flexible: 71.5 mm
Conductor Size	4 mm
Conductor Type	Class 5 Tinned Copper
Core Colours	Black/Brown/Grey/Green/Yellow
Insulation Material	Ethylene-Propylene Rubber (EPR)
Number of Cores	3 Core + Earth
Overall Diameter	14.3 mm
Sheath Colour	Black
Sheath Material	CPE
Standards	AS/NZS 5000.1
Temperature	-40 to 90 deg C
Voltage	0.6-1 kV
