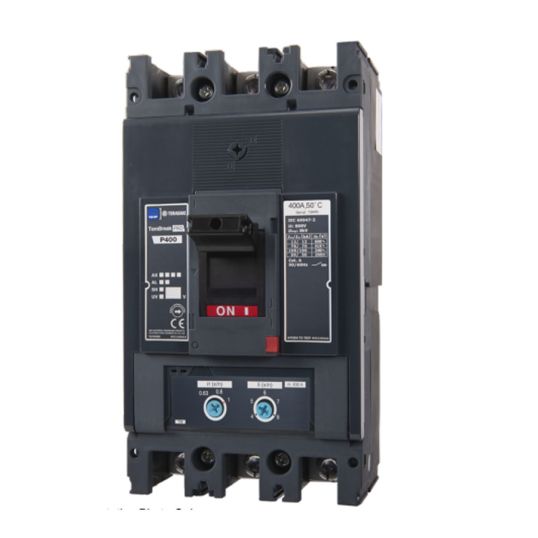

Terasaki TemBreak Pro Moulded Case Circuit Breaker 400A 36kA 3P 24-690VAC/250VDC 252-400A Thermal Magnetic Trip

$Terasaki\Terasaki_P400F3400TM.jpg$

Description

Moulded Case Circuit Breaker, 24-690 Volt AC/250 Volt DC, 400 Amp, 50/60 Hz, 36 kA Interrupt Capacity, 3 Pole, 252-400 Amp Thermal Setting, 2000-4000 Amp Magnetic Setting, 400 AF Frame, Thermal Magnetic Trip, Bolt Terminal, Panel Mount,-5 to 70 deg C, 260mm Height x 140mm Width x 151mm Depth

Key Specifications

SKU	TERP400F3400TM
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status-maximising machine and user safety Complies to AS / NZS 60947-2, IEC 60947-2 and CE Panel mount standard, with other mounting options 3 or 4 pole versions Suits XCP chassis, with panelboard options Fault ratings; 25, 36, 50, 70, 110, 125 or 200 kA Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	P400F3400TM
Depth	151 mm
Current	400 Amp
Frequency	50/60 Hz
Frame Type	400 AF
Interrupt Capacity	36 kA
Height	260 mm
Magnetic Setting	2000-4000 Amp
Mounting Method	Panel
Terminal Type	Bolt
Temperature	-5 to 70 deg C
Number Of Poles	3 Pole
Thermal Setting	252-400 Amp
Trip Type	Thermal Magnetic
Voltage	24-690 Volt AC/250 Volt DC
Width	140 mm
