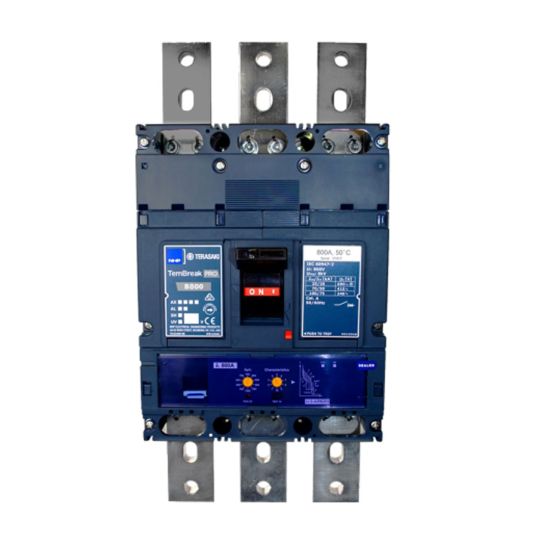

Terasaki TemBreak Pro Moulded Case Circuit Breaker Basic Electronic 50 kA 3 Pole 800A 800 Frame

$Terasaki\Terasaki_B800N3800BE.jpg$

Description

Moulded Case Circuit Breaker Basic Electronic, 690 Volt AC, 800 Amp, 50/60 Hz, 50 kA Interrupt Capacity, 3, 320-800 Amp Thermal Setting, 800 Frame Frame, Extension Bar Terminal, Panel Mounting,-5 to 70 deg C, 273mm Height x 210mm Width x 145mm Depth

Key Specifications

SKU	TERB800N3800BE
Brand	Terasaki
Range Name	TemBreak Pro
Product Type	MCCBs

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	General purpose power distribution, motor starting as well as energy metering and communications Current limiting device, reduces fault let through energy for increased installation safety Direct opening and indication of main contact status maximising machine and user safety Trip unit options include Thermal magnetic or electronic types Panel mount standard, with other mounting options 3 or 4 pole versions Fault ratings: 36, 50, 70, 100, 125 or 200 kA Trip unit options include thermal magnetic or electronic types
Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	B800N3800BE
Current	800 Amp
Depth	145 mm
Frame Type	800 Frame
Frequency	50/60 Hz
Interrupt Capacity	50 kA
Number Of Poles	3 Pole
Mounting Method	Panel
Temperature	-5 to 70 deg C
Terminal Type	Extension Bar
Thermal Setting	320-800 Amp
Height	273 mm
Width	210 mm
Voltage	690 Volt
