Teco Electric Motor Squirrel Cage Induction 4P 0.75kW 1Ph 240V D80 Frame Foot Mount

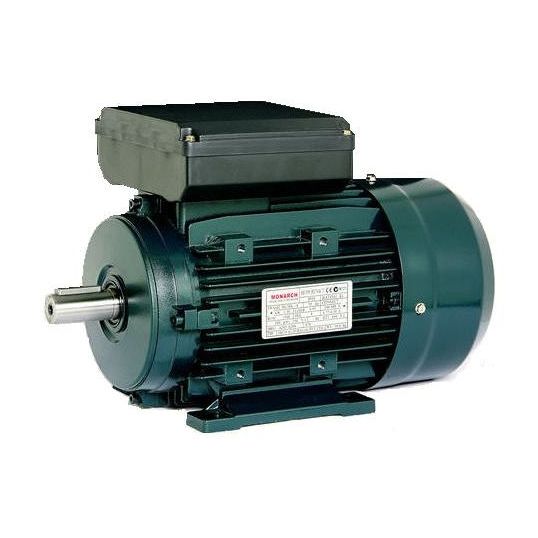

$Teco\Teco_Monarch_1Phase.jpg$

Description

Electric Motor Squirrel Cage Induction, 240 Volt AC, 5 Amp, 0.75 kW, 50 Hz, 1 Phase, 1400 rpm, 4 Pole, IP55, Frame: D80, Shaft Size: 19 mm, Duty Cycle: S1, Ball Bearing, Torque: 32 N/m, Foot Mount, Insulation Class: Class F, <80 deg C, Aluminium, Teal, 295 mm Length x 235 mm Height

Key Specifications

SKU	TEO132/0.75ME4
Brand	Teco
Range Name	Monarch Single Phase
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Metric frame motor to AS1359 Totally enclosed fan cooled Motors less 1.5 kW are 240 Volts Single Phase 50 Hz and include manual overload protection Motors 1.5 kW and larger are 240/480 volts single phase 50 Hz Class F insulation with a Class B temperature rise Continuous rated, duty type S1 Capacitor start, capacitor run for good starting torque Alloy Frame motor with top mounted terminal box
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	132/0.75ME4
Bearing Type	Ball
Current	5 Amp
Colour	Teal
Frame	Size D80
Frequency	50 Hz
Height	235 mm
IP Rating	IP55
Insulation Class	Class F
Horsepower	0.75 kW
Material	Aluminium
Number Of Poles	4 Pole
Mounting Method	Foot
Phase	1 Phase
Shaft Size	19 mm
Speed	1400 rpm
Torque Rating	32 Nm
Temperature	<80 deg C
Voltage	240 Volt AC
