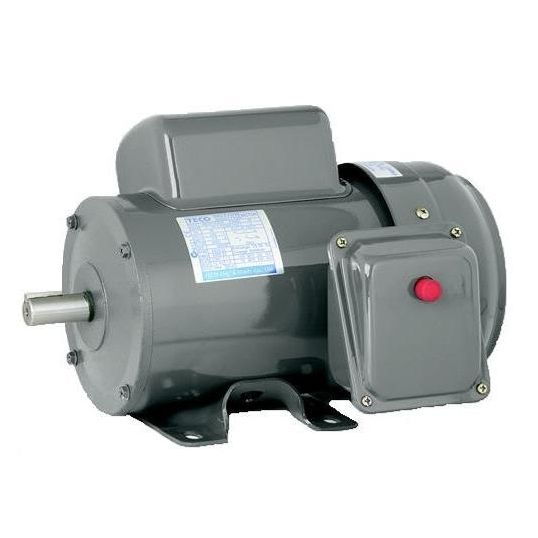

Teco Electric Motor Squirrel Cage Induction 4P 0.18kW 1Ph 240V D63 Frame Foot Mount

$Teco\Teco_BEGY.jpg$

Description

Electric Motor Squirrel Cage Induction, 240 Volt AC, 1.7 Amp, 0.18 kW, 50 Hz, 1 Phase, 1430 rpm, 4 Pole, IP44, Frame: D63, Shaft Size: 14 mm, Bi-Directional Rotation, Duty Cycle: S1, Single Row Deep Groove Bearing, Torque: 1.18 N/m, Foot Mount, Insulation Class: Class H/F, -10 to 40 deg C, Cast Iron

Key Specifications

SKU	TEO031/E0.18BE4
Brand	Teco
Range Name	BEGY Rolled Steel Metric
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Totally enclosed fan cooled Low temperature rise for substantial thermal reserve Continuous rated, duty type S1 Steel terminal/capacitor box and fan cover Manual overload protection
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	031/E0.18BE4
Bearing Type	Single Row Deep Groove
Current	1.7 Amp
Frame	Size D63
Frequency	50 Hz
IP Rating	IP44
Insulation Class	Class H/F
Horsepower	0.18 kW
Material	Cast Iron
Number Of Poles	4 Pole
Mounting Method	Foot
Phase	1 Phase
Shaft Size	14 mm
Rotation	Bi Directional
Speed	1430 rpm
Torque Rating	1.18 Nm
Temperature	-10 to 40 deg C
Voltage	240 Volt AC
