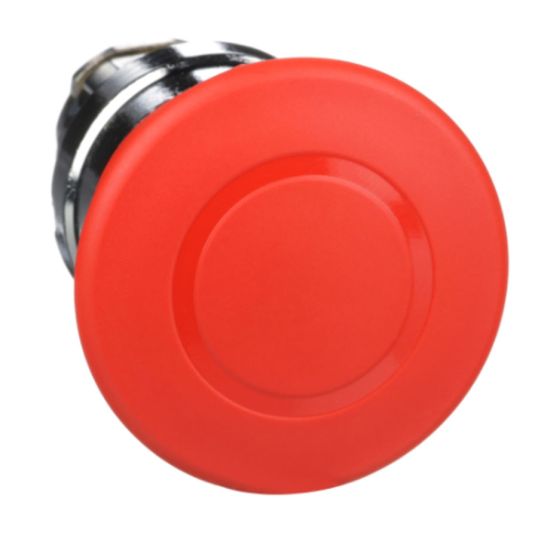

Telemecanique Emergency Stop Actuator Only 40mm Head Metal Body k Push-Pull Red 22mm Panel Mount

Description

Emergency Stop Actuator, Non-Illuminated Trigger Latching Action Operator Action, Unmarked Operator Profile, Standard Head, Push-Pull Reset Type, Screw Clamp/Plug-in/Printed Circuit Board/Faston Terminal, 0.6 Nm Tightening Torque, Panel Mounting, 22 mm Mounting Diameter, IP66/67/69/69K, Chromium Plated Metal Bezel, Red, -40 to 70 deg C, 22 mm, 40 mm Height, 40 mm Width, 56 mm Depth

Key Specifications

Barcode (EAN-13)	3389110892376
SKU	TEEZB4-BT84
Brand	Telemecanique
Product Type	P/B Actuators Emergency Stop

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	ZB4BT84
Bezel Material	Chromium Plated Metal
Colour	Red
Depth	56 mm
Height	40 mm
Head Type	Standard
IP Rating	IP66/67/69/69K
Mounting Method	Panel
Operator Action	Non-Illuminated Trigger Latching Action
Mounting Diameter	22 mm
Operator Profile	Unmarked
Reset Type	Push-Pull
Size	22 mm
Temperature	-40 to 70 deg C
Terminal Connection	Screw Clamp/Plug-In/Printed Circuit Board/Faston
Tightening Torque	0.6 Nm
Width	40 mm
