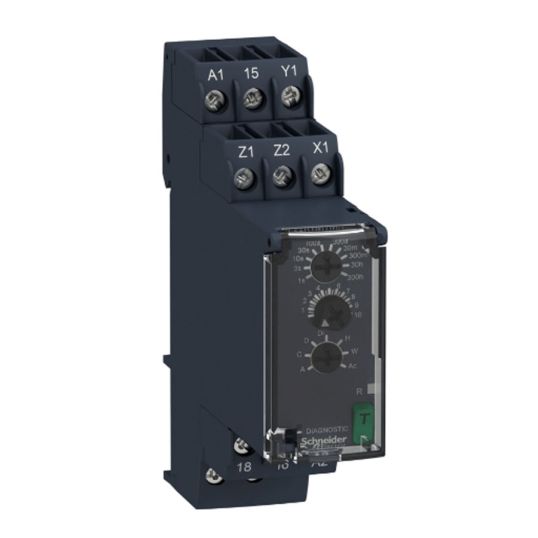

Schneider Zelio Modular Timing Relay 8A 0.05sec-300hr 1CO Multi-Function 24-240VAC/DC

Name: Modular Timing Relay 8A 0.05sec-300hr 1CO Multi-Function
SKU: TEERE22R1MYMR
Availability: InStock

$Schneider\Schneider_TEERE22R1MYMR.jpg$

Description

Modular Timing Relay, 24-240 Volt AC/DC, 8 Amp, 1.5 Watt at 240 Volt DC, Contact Configuration: 1CO, Resistance: 100 MOhm at 500 Volt DC, Timing Function: Multifunction, Timing Range: 0.05 sec to 300 hrs, Control Type: Rotary Knob, 10000000 Cycles, Conductor Size: 20-12 AWG, 20-14 AWG, 24-14 AWG, 24-16 AWG, Screw Terminal, 35 mm DIN Rail Mount, IP40 (Housing), IP50 (Front Face), IP20 (Terminals), -20 to 60 deg C, 90 mm Height, 22.5 mm Width, 73 mm Depth

Key Specifications

Barcode (EAN-13)	3606480792434
SKU	TEERE22R1MYMR
Brand	Schneider
Product Type	Timing Relays

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39122300
UOM	EA
Vendor Product	RE22R1MYMR
Conductor Size	20-12 AWG/20-14 AWG/24-14 AWG/24-16 AWG
Contact Configuration	1 Changeover
Depth	73 mm
IP Rating	IP40 (Housing)/50 (Front Face)/20 (Terminals)
Current	8 Amp
Height	90 mm
Control Type	Rotary Knob
Operating Cycles	10000000 Cycles
Mounting Method	DIN Rail
Temperature	-20 to 60 deg C
Power Rating	1.5 Watt at 240 Volt DC
Terminal Connection	Screw
Timing Function	Multifunction
Timing Range	0.05 Seconds-300 Hours
Voltage	24-240 Volt AC/DC
Width	22.5 mm
