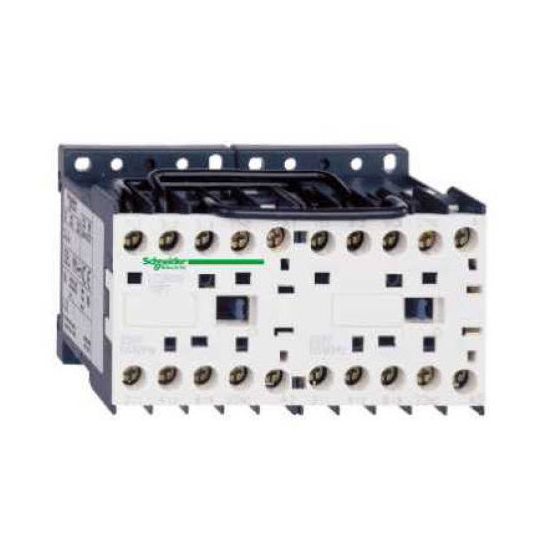

Schneider Contactor Reversing 3 Pole 4kW 9A 20/16A 24V 2NO Auxiliary DIN Rail/Plate Mount

Description

Contactor Reversing, 24 Volt AC, 2NO Auxiliaries, AC3 Rating (kW): 4, AC3 Rating (Amps): 9, AC1 Rating (Amps): 20 /16, 3 Pole, Operating Time: 10-20 ms Closing/10-20 ms Opening, Screw Clamp Terminal, IP20, DIN Rail/Plate Mount, -25 to 50 deg C, 58 mm Height, 90 mm Width, 57 mm Depth

Key Specifications

Barcode (EAN-13)	3389110492286
SKU	TEELC2-K0910B7
Brand	Schneider
Range Name	TeSys Model K
Product Type	Contactors Reversing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Motor control, resistive load application
Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC2K0910B7
AC1 Rating (Amps)	20/16 Amp AC1
AC3 Rating (Amps)	9 Amp AC3
AC3 Rating (kW)	4 kW
Contact Configuration	2 Normally Opened Aux
Depth	57 mm
Height	58 mm
IP Rating	IP20
Mounting Method	DIN Rail/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	24 Volt AC
Operating Time	10-20 ms Closing/10-20 ms Opening
Temperature	-25 to 50 deg C
Terminal Connection	Screw Clamp
Width	90 mm
