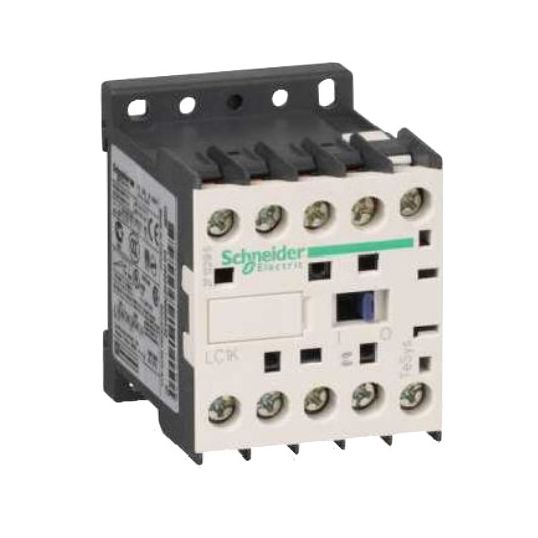

Schneider Contactor General Purpose AC Operated 3 Pole 4kW 9A AC3 16A AC1 24V 1NC Auxilary DIN Rail/Plate Mount

Description

Contactor General Purpose AC Operated, 24 Volt AC, AC3 Rating (kW): 4, AC3 Rating (Amps): 9, AC1 Rating (Amps): 16, 690 Volt AC, 1NC Auxiliary, 3 Pole, Operating Time: 10-20 ms Coil De-Energisation and NO Opening/Closing, Screw Clamp, DIN Rail/Plate Mount, IP2X, 58 mm Height, 45 mm Width, 57 mm Depth

Key Specifications

Barcode (EAN-13)	3389110365122
SKU	TEELC1-K0901B7
Brand	Schneider
Range Name	TeSys Model K
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1K0901B7
AC1 Rating (Amps)	16 Amp AC1
AC3 Rating (Amps)	9 Amp AC3
AC3 Rating (kW)	4 kW
Contact Configuration	1 Normally Closed Aux
Contact Voltage	690 Volt AC
Depth	57 mm
Height	58 mm
IP Rating	IP2X
Mounting Method	DIN Rail/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	24 Volt AC
Operating Time	10-20 ms Coil De-Energisation
Terminal Connection	Screw Clamp
Width	45 mm
