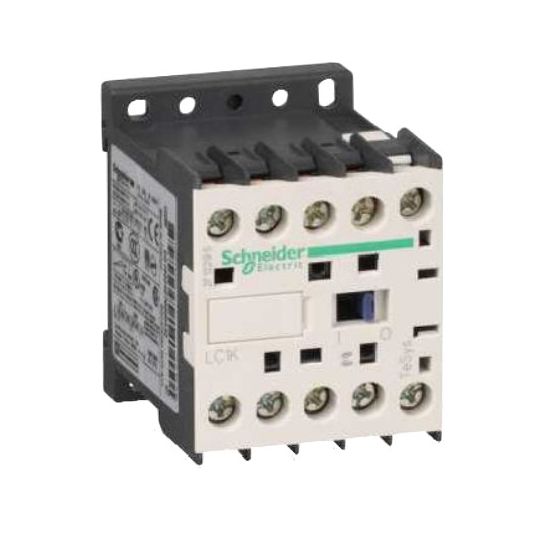

Schneider Contactor General Purpose AC Operated 3 Pole 3kW 6A AC3 20A AC1 400-415V 1NO Auxiliary DIN Rail/Plate Mount

Description

Contactor General Purpose AC Operated, 400-415 Volt AC, AC3 Rating (kW): 3, AC3 Rating (Amps): 6, AC1 Rating (Amps): 20, 690 Volt AC, 1NO Auxiliary, 3 Pole, Operating Time: 10-20 ms Coil De-Energisation and NO Opening/Closing, Screw Clamp, DIN Rail/Plate Mount, IP2X, 58 mm Height, 45 mm Width, 57 mm Depth

Key Specifications

Barcode (EAN-13)	3389110487640
SKU	TEELC1-K0610N7
Brand	Schneider
Range Name	TeSys Model K
Product Type	Contactors General

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121500
UOM	EA
Vendor Product	LC1K0610N7
AC1 Rating (Amps)	20 Amp AC1
AC3 Rating (Amps)	6 Amp AC3
AC3 Rating (kW)	3 kW
Contact Configuration	1 Normally Opened Aux
Contact Voltage	690 Volt AC
Depth	57 mm
Height	58 mm
IP Rating	IP2X
Mounting Method	DIN Rail/Plate
Number Of Poles	3 Pole
Operating Coil Voltage	400-415 Volt AC
Operating Time	10-20 ms Coil De-Energisation
Terminal Connection	Screw Clamp
Width	45 mm
