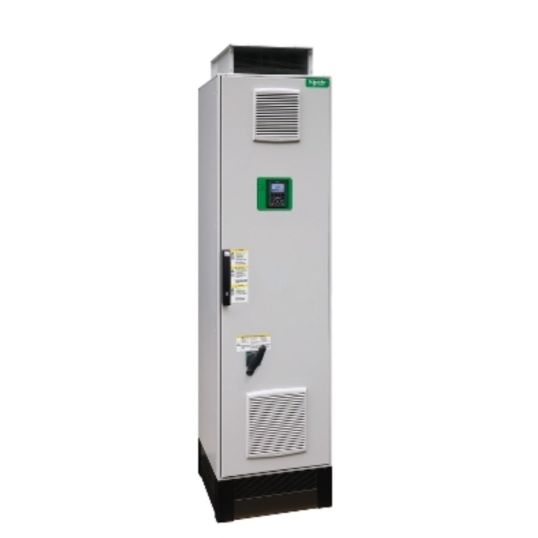

Schneider Altivar Process Variable Speed Drive 380-440V 262/319A 50/60Hz 3PH Floor Standing IP54

Description

Variable Speed Drive, 380-440 Volt Operating Voltage, 262/319 Amp, 200 kW (Normal Duty), 160 kW (Heavy Duty), 50/60 Hz, 3 Phase, 3 Inputs, 2 Outputs, IP54, Floor Standing Mounting, 40 to 50 deg C, 2350mm Height, 600mm Width, 669mm Depth

Key Specifications

Barcode (EAN-13)	3606485410845
SKU	TEEATV650C20N4F
Brand	Schneider
Product Type	Motor Starters Variable Speed Drive

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Embedded power measurement and energy dashboard Embedded process monitoring and control Stop and Go function to reduce energy consumption Asset monitoring and protection Drift monitoring Environmental performance of the product
Standard Pack Size	1
UNSPSC Class	39122000
UOM	EA
Vendor Product	ATV650C20N4F
Depth	669mm
Current	262-319 Amp
Frequency	50/60 Hz
Height	2350mm
IP Rating	IP54
Mounting Method	Floor Stand
Motor Power	200 kW
Number of Inputs	3 Inputs
Number of Outputs	2 Outputs
Phase	3 Phase
Operating Voltage	380-440 Volt AC
Temperature	40 to 50 deg C
Width	600mm
