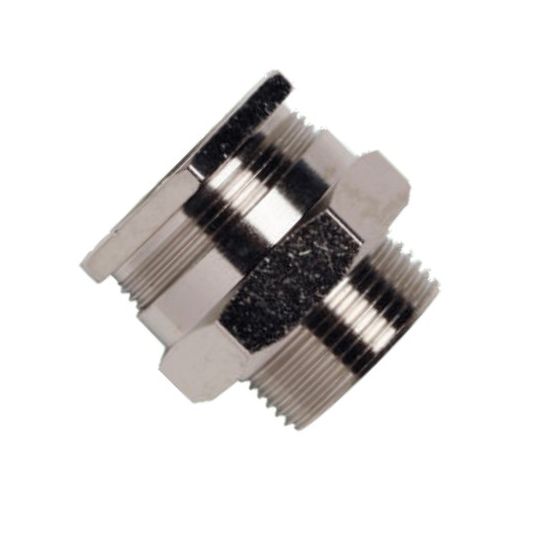

Surefit Metal Cable Gland Unarmoured General Purpose M20x1.5 9.2-14.7mm Nickel Plated Brass IP68

$Surefit\Surefit_GPHM_Glands.jpg$

Description

Nickel plated brass cable glands for use with circular unarmoured and flexible cables to secure and ensure an IP68 entry for cable into panel or enclosure. The cable glands in this range are suitable for use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust Weatherproof gland type termination is required.

Key Specifications

SKU	SURGPHM20B
Brand	Surefit
Range Name	Type GPHM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For weatherproof unarmoured cable applications Nickel plated brass cable glands for use with circular unarmoured and flexible cables to secure and ensure an IP68 entry for cable into panel or enclosure For use in machine and equipment construction, measuring and regulation equipment, construction site installation and many other applications where a robust Weatherproof gland type termination is required
Standard Pack Size	24
UNSPSC Class	39121400
UOM	EA
Vendor Product	GPHM20B
Body Material	Brass
Finish	Nickel Plated
For Use With	Unarmoured Cables
IP Rating	IP68
Max. Sheath OD	14.7 mm
Min. Sheath OD	9.2 mm
Protrusion Length	19 mm
Seal Material	Neoprene
Thread Length	10 mm
Thread Size	M20 x 1.5 mm
Thread Pitch	1.5 mm
Width Across Flats	23.3 mm
Width Across Corners	27 mm
