Ginlong/Solis S6 5000W PV Grid Tie 1P Inverter Dual MPPTBuit-in DCInclude WIFI 14A Max. input current

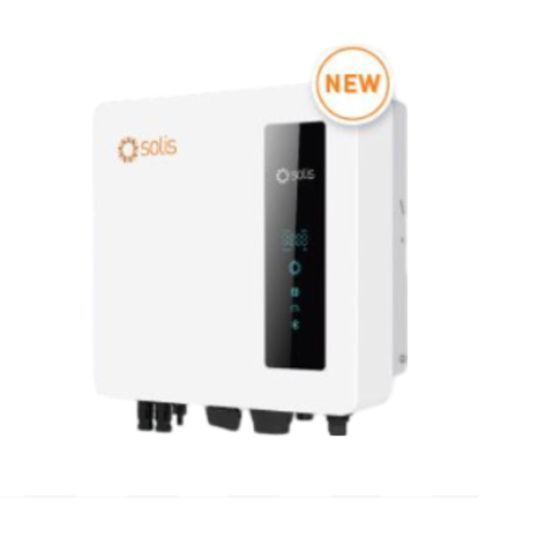

$Solis\Solis_S6-GR1P3K-S.JPG$

Description

S6-GR1P(2.5-6)K-S series inverter is designed for residential PV plants. The maximum input current per string is 16 Amp, which is compatible with high-efficiency modules and bi-facial modules. Compact and lightweight design, bring easy installation. The protection level is increased to IP66. A variety of intelligent protection functions make home power supply safe and secure.

Key Specifications

SKU	SOLS6-GR1P5K-S
Brand	Solis
Range Name	Inverter
Product Type	Inverters

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	String current up to 16 Amp AFCI protection, proactively reduces fire risk 24-hour load consumption monitoring Compact design for easy installation Supports export power control Adaptive weak grid
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	S6-GR1P5K-S
AC Max. Apparent Power	5 kVA
AC Operating Frequency	50/60 Hz
AC Nominal Voltage	220 / 230 Volt 1/N/PE
AC Output Current	22.7 / 21.7 Amp
AC Output Power	5 kW
Connection Type	DC: MC4 / AC: Quick Connection Plug
Communication Port	RS485/USB Optional: Wi-Fi / GPRS
Cooling Method	Natural Cooling with Internal Fan
DC Input Power	7.5 kW
DC Input Voltage	550 Volt
DC Nominal Voltage	330 Volt
DC Max. Input Current	16 Amp
DC MPPT Voltage Range	90-550 Volt
DC Start-up Voltage	100 Volt
Depth	161 mm
DC Switch	Integrated
Height	371 mm
Display Type	LED + Bluetooth + APP
IP Rating	IP66
Efficiency	97.70%
European Weighted Efficiency	97.10%
Max. Operating Altitude	4000 mtr
Power Factor	>0.99 (0.8 Leading-0.8 Lagging)
Noise Level	< 20 dBA
Number of MPPTs	2
Operating Temperature	-25 to 60 deg C
Phase	1 Phase
Relative Humidity	0-100%
Total Harmonic Distortion	<3%
Topology	Transformerless
Width	330 mm
