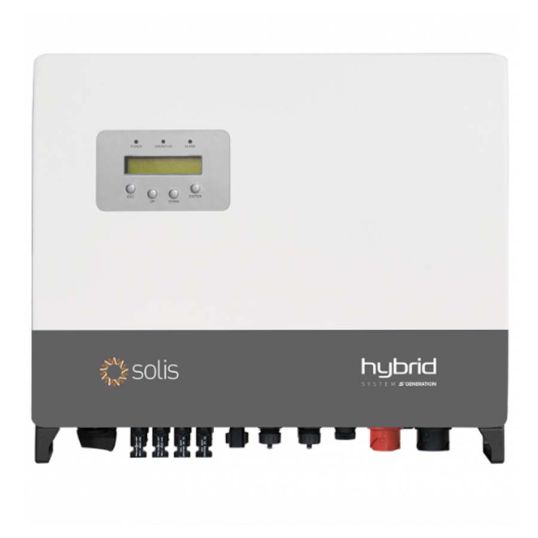

Ginlong/Solis RHI 6000W PV Hybrid Inverter 3 Phase 2MPPT Buit-in DC WIFI Included

chevron-left
loader
Loading...

Description

chevron-down
The RHI-3P(5-10)K-HVES-5G series of Solis Energy Storage Inverters offer advanced features for efficient and reliable energy management: UPS Function: Ensures uninterrupted power supply with a reaction time of less than 40 ms, safeguarding the power supply for important loads. 24-Hour Solar Energy Use: Facilitates continuous utilisation of solar energy, maximising efficiency and savings. Cost Savings: Achieve up to zero energy costs through efficient solar and battery management. Load Consumption Monitoring: Optional 24-hour load consumption monitoring solution available. Fanless Design: Ensures a long lifespan and quiet operation. Remote Monitoring and Setup: Easy monitoring and setup via remote app settings. Peak and Valley Regulation: Optimise electricity consumption by charging at night when costs are low and selling electricity during the day when prices are high. Easy Operation and Maintenance: Remotely control and upgrade any selected inverter, bringing digital power plant maintenance into the palm of you hand.

Key Specifications

chevron-down
SKU
SOLRHI-3P6K-HVES-5G
Brand
Solis
Range Name
Inverter
Product Type
Hybrid Inverters

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • 2 MPPT and 4 DC input; Max 26 Amp DC input current
  • 3 operating modes (self-consumption; time-of-use; off-grid back-up) and programmable energy management
  • Power supply can be switched automatically and switching time within 40 ms
  • Ensures AC backup for up to 10 kW of continuous power and 16 kVA of peak power
  • Time of use shifting and peak shaving capabilities to grid
  • AFCI protection, proactively reduces fire risk
Standard Pack Size 1
UNSPSC Class 26111600
UOM EA
Vendor Product RHI-3P6K-HVES-5G
AC Max. Apparent Power 6 kVA
AC Nominal Voltage 400 Volt 3/N/PE
AC Operating Frequency 50 Hz
AC Output Power 6 kW
AC Output Current 10 Amp Grid / 8.7 Amp Back-Up
Battery 160-600 Volt Lithium-Ion
Communication Port RS485 Optional: Wi-Fi / GPRS
Connection Type DC: MC4 / AC: Quick Connection Plug
Cooling Method Natural Convection
DC Input Power 9.6 kW
DC Max. Input Current 13 Amp
DC Input Voltage 1000 Volt
DC MPPT Voltage Range 200-850 Volt
DC Nominal Voltage 600 Volt
DC Start-up Voltage 160 Volt
DC Switch Integrated
Depth 185 mm
Display Type LCD
Efficiency 98.40%
Height 455 mm
IP Rating IP65
European Weighted Efficiency 97.70%
Max. Operating Altitude 4000 mtr
MPPT Efficiency 99.90%
Number of MPPTs 2
Operating Temperature -25 to 60 deg C
Phase 3 Phase
Power Factor >0.99 (0.8 Leading-0.8 Lagging)
Relative Humidity 0-100%
Topology Non-isolated
Total Harmonic Distortion <2%
Width 535 mm
