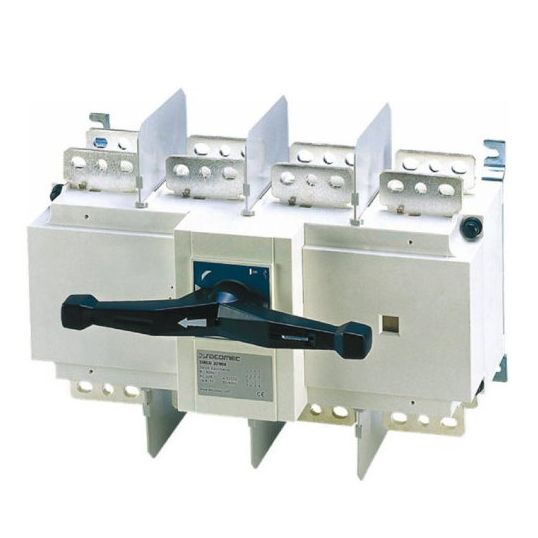

Socomec Load-Break Switch Front Operated 4P 800A AC21 450 kW AC23 Base Mount IP65

$Socomec\Socomec_SLB_SIRCO_3_4_Pole.jpg$

Description

Load-Break Switch Front Operated, 400-690 Volt AC, 220/500 Volt DC, 800 Amp, AC21 Rating: 800 Amp, AC23 Rating: 800 Amp @ 400/415 Volt, 450 kW @ 400/415/500 Volt, 4 Pole, Cable Size: 185-300 mm, Tightening Torque: 37 Nm, IP65, Base Mount/Panel, 321 mm Height, 360 mm Width, 140 mm Depth

Key Specifications

Barcode (EAN-13)	9321807196422
SKU	SOCSLB8004P
Brand	Socomec
Range Name	SIRCO SLB
Product Type	Load-Break Switches

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Double break per pole offers high durability and short-circuit withstand Use of glass fibre reinforced polyester provides high mechanical and thermal resistance (does not include SLBM or VLBM modular series) Quick and easy to install thanks to good centre to centre distance and connection accessories including copper connecting links Wide range of accessories available which is flexible in adapting to various applications and reduces the cost of management and storage All Socomec load break switches are compatible with the ergonomic IP65 S-Type Handles which features interlocking (in the ON position), padlocking, UV and chemical agent resistive material and the choice of standard blue or red / yellow colour
Standard Pack Size	1
UNSPSC Class	39122200
UOM	EA
Vendor Product	SLB8004P
AC23 Rating	800 Amp 450 kW @ 400-415 Volt
Cable Size	185-300 sq-mm
Current	800 Amp
Depth	140 mm
Height	321 mm
IP Rating	IP65
Number Of Poles	4 Pole
Width	360 mm
Voltage	400-690 Volt AC/220-500 Volt DC
Tightening Torque	37 Nm
