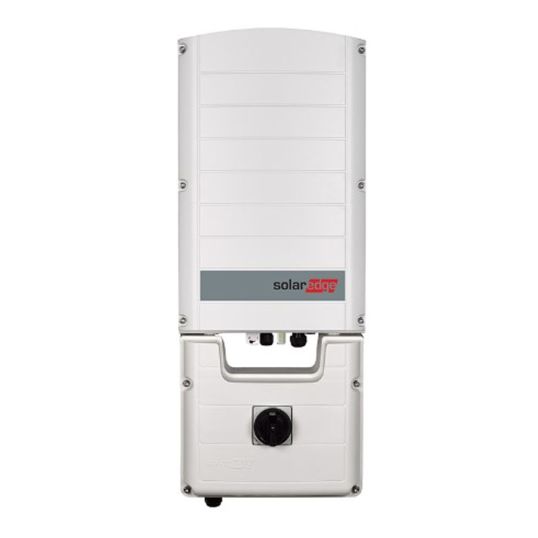

Solar Edge Solar Inverter Three Phase 15kW RS485/Ethernet/Wi-Fi

$Solar_Edge\SolarEdge_SE15K-AU0T0BN-U4.jpg$

Description

SolarEdge 3Ph Inverter Commercial 15kW

Looking for something specific? Search with keywords to help filter your required specifications.

Features	Superior efficiency Quick and easy inverter commissioning directly from smartphone using SolarEdge SetApp Small, lightest in its class and easy to install Built-in module level monitoring Internet connection through Ethernet or wireless(Wi-Fi, ZigBee Gateway, Cellular) Fixed voltage inverter for longer strings Integrated DC safety unit-elimates the need of external DC isolator
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	SE15K-AU0T0BNU4
AC Nominal Voltage	230-400 Volt-3/N/PE
AC Operating Frequency	50/60 Hz +/-5 Hz
AC Output Power	15 kW
Communication Port	RS485/Ethernet/ZigBee/Cellular/Wi-Fi(Optional)
AC Output Current	23 Amp
AC Operating Voltage	184-264.5 Volt
Cooling Method	Fan
DC Input Power	20250 Watt
DC Input Voltage	DC to DC 830 Volt/DC to GND 415 Volt
DC Nominal Voltage	DC to DC 750 Volt/DC to GND 375 Volt
DC Operating Voltage	680-830 Volt DC
DC Switch	1000 Volt/23 Amp
DC Max. Input Current	22 Amp
Depth	260 mm
Efficiency	98%
European Weighted Efficiency	97.60%
Height	775 mm
IP Rating	IP65
Mounting Method	Bracket
Noise Level	<50 dBA
Operating Temperature	-40 to 60 deg C
Phase	3 Phase
Topology	Transformerless/Ungrounded
Width	315 mm
