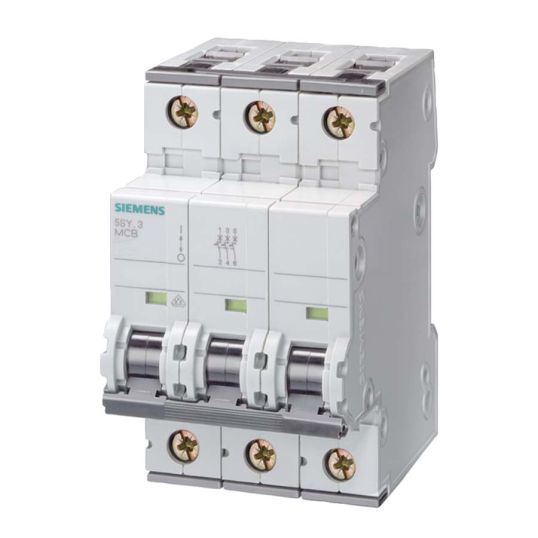

Siemens Miniature Circuit Breaker 10kA 3 Pole 20A C Curve
Loading...
Description
Miniature Circuit Breaker, 400 Volt AC, 60 Volt DC, 20 Amp, 50/60 Hz, 10 kA Interrupt Capacity, 3 Module, 3 Pole, C Curve, 2.5 - 3.5 Nm Tightening Torque, IP20, -25 to 55 deg C, 90mm Height, 54mm Width, 76mm Depth
Key Specifications
| Barcode (EAN-13) |
4001869446110
|
|---|---|
| SKU |
SIE5SY4320-7CC
|
| Brand |
Siemens
|
| Product Type |
Mini Circuit Breakers
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 4 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | 5SY4320-7CC |
| Current | 20 Amp |
| Depth | 76 mm |
| Frequency | 50/60 Hz |
| Height | 90 mm |
| Interrupt Capacity | 10 kA |
| IP Rating | IP20 |
| Number Of Poles | 3 Pole |
| Temperature | -25 to 55 deg C |
| Tightening Torque | 2.5-3.5 Nm |
| Width | 54 mm |
