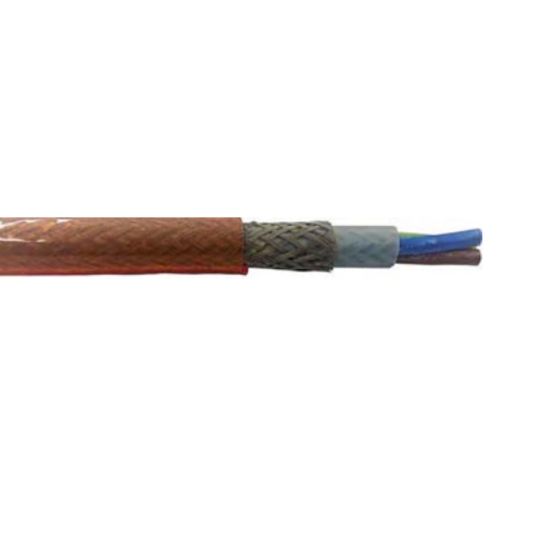

Siemens Protoflex EMC Flexible Cable VSD/EMC Screened UV Stabilised 3 Core & 3 Earth 10mm 0.6/1kV PVC Clear Orange

$Siemens\Siemens_Protoflex_EMC.jpg$

Description

VSD/EMC Cable UV Stabilised, 10 mm, 0.6-1 kV, 3 Core + 3 Earth, 80/0.4 mm Strands, 19 mm Overall Diameter, 1.5 mm Earth Conductor, Static 158 mm Flexible 186 mm Bend Radius, Tinned Copper Braid Screen, PVC Sheath, Clear/Orange Sheath, AS/NZS 3008.1.1:2017

Key Specifications

SKU	SIE5EMV4100
Brand	Siemens
Product Type	VSD/EMC Cable UV Stabilised

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5EMV4100
Bend Radius	Static 158 mm/Flexible 186 mm
Conductor Size	10 mm
Earth Conductor Size	1.5 mm
Number of Cores	3 Core + 3 Earth
Overall Diameter	19 mm
Screen Material	Tinned Copper Braid
Sheath Colour	Clear/Orange
Sheath Material	PVC
Standards	AS/NZS 3008.1.1:2017
Stranding	80/0.4 mm
Voltage	0.6-1 kV
