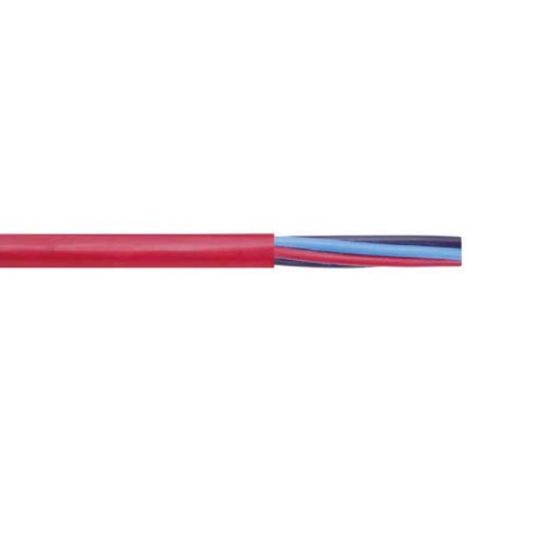

Siemens Sinotherm Flexible Cable High Temperature 180 deg C 3 Core & Earth 0.75mm Copper 300/500V Silicon

$Siemens\Siemens_Sinotherm_Flexible.jpg$

Description

Flexible Cable High Temperature 180 degC 3 Core & Earth, 0.75 mm, Stranded Copper, 300/500 Volt, 3 Core & Earth, 24/0.2 mm Strands, 7.8 mm Overall Diameter, Static 31.2 mm/Flexible 39 mm Bend Radius, Silicon Insulation, Blue Brown Black Green/Yellow Cores, -55 to 180 degC, AS/NZS 5000.1, AS/NZS 1125

Key Specifications

SKU	SIE5DR5428-4
Brand	Siemens
Range Name	Sinotherm
Product Type	Flexible Cable High Temperature

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	5DR5428-4
Bend Radius	Static 31.2 mm - Flexible 39 mm
Conductor Size	0.75 mm
Conductor Type	Stranded Copper
Core Colours	Black/Blue/Brown/Green/Yellow
Insulation Material	Silicon
Number of Cores	4 Core + Earth
Overall Diameter	7.8 mm
Standards	AS/NZS 5000.1 AS/NZS 1125
Stranding	24/0.2 mm
Temperature	-55 to 180 deg C
Voltage	300-500 Volt
