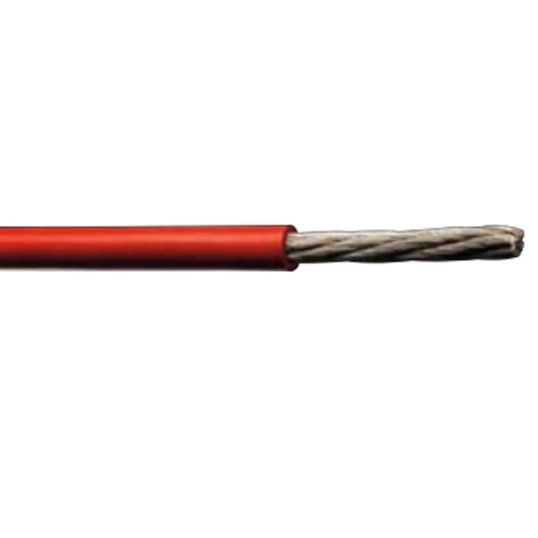

Siemens 70mm 1 Core High Temperature Flexible Wire Silicone Rubber
Loading...
Description
Flexible Wire, High Temperature, 70 mm, Stranded Copper, 0.6-1 kV, 1 Core, 360/0.5 mm Strands, 15.7 mm Overall Diameter, 62.8 mm Static/78.5 mm Flexible Bend Radius, Silicone Rubber Insulation, -55 to 180 deg C, AS/NZS 1125
Key Specifications
| SKU |
SIE5DR3524
|
|---|---|
| Brand |
Siemens
|
| Range Name |
Sinotherm
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 500 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 5DR3524 |
| Bend Radius | Static 62.8 mm - Flexible 78.5 mm |
| Conductor Type | Stranded Copper |
| Conductor Size | 70 mm |
| Insulation Material | Silicone Rubber |
| Number of Cores | 1 Core |
| Overall Diameter | 15.7 mm |
| Standards | AS/NZS 1125 |
| Temperature | -55 to 180 deg C |
| Stranding | 360/0.5 mm |
| Voltage | 0.6-1 kV |
